| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Ingress Protection | |
| Life Time | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

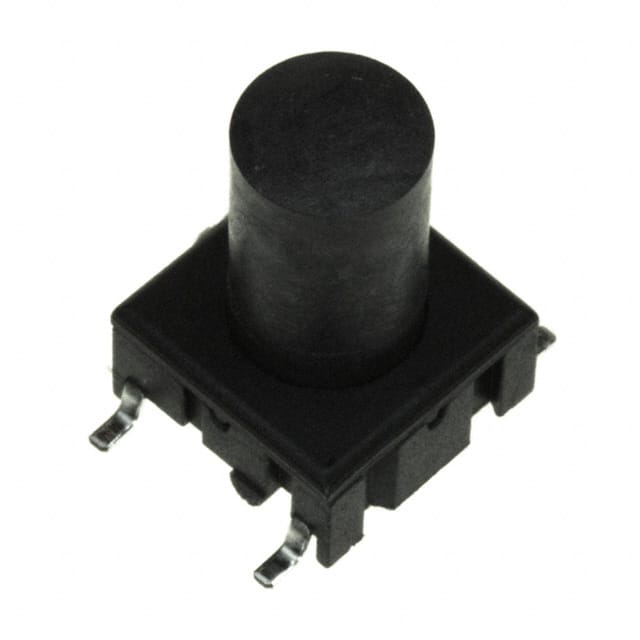

The MEC Switches 3ESH9-15.0 is a tactile switch designed for various applications requiring a momentary action. It operates with a single pole, single throw, normally open (SPST-NO) circuit configuration.
This switch is rated for 0.05A at 24VDC, making it suitable for low-power switching applications. The actuator height is precisely 15.00mm off the PCB, and it features a standard top-actuated design. The operating force required is 300gf.
Designed for surface mounting, the 3ESH9-15.0 utilizes gull wing termination style for secure PCB attachment. Its dimensions are 10.10mm x 10.10mm. The switch is sealed for flux protection and operates within a temperature range of -40°C to 160°C, with an IP67 ingress protection rating for dust-tight and waterproof performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.05A @ 24VDC.
The operating temperature range is -40°C to 160°C.
The RoHS status is RoHS3 Compliant.
The actuator height off the PCB is 15.00mm.
It is a surface mount switch with gull wing termination.
