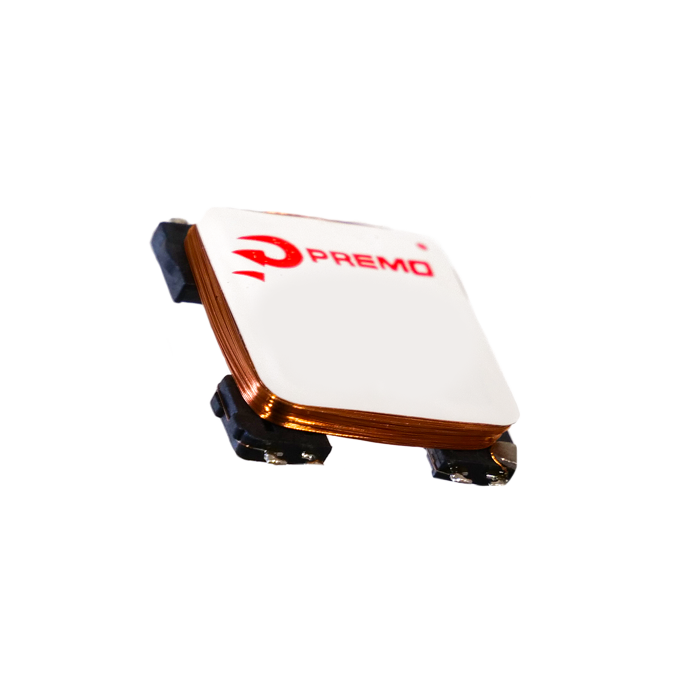

The PREMO 3DC15-1000J is a surface-mount 3D Coil Inductor, part of the 3DC15 series, designed for applications requiring high sensitivity and precise field sensing. This component offers a nominal inductance of 10mH, with a parallel resonant capacitance of 162pF and a typical Q factor greater than 25 at 125 kHz. Its self-resonant frequencies are 220 kHz for the X/Y axes and 500 kHz for the Z axis, with a maximum DC resistance of 160 Ohms for X/Y and 275 Ohms for Z.
With dimensions of 17.5x16x4mm, this inductor is suitable for compact designs. It operates reliably within a temperature range of -40°C to +85°C. The 3DC15 series is known for its high drop test resistance and stability, making it a robust choice for demanding environments.
Key applications include automotive passive keyless entry systems, TPMS with wake-up functions, access control systems, and tracking devices. The design ensures optimal field sensing regardless of position, and it is available in isotropic versions, with or without a cover cap, or labeled.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 3DC15-1000J has a typical inductance of 10mH at 125 kHz, 1 Vac.
The self-resonant frequency for the X/Y axes is a minimum of 220 kHz, and for the Z axis is a minimum of 500 kHz.
The 3DC15-1000J operates within a temperature range of -40°C to +85°C.
The maximum dimensions of the 3DC15-1000J are 17.5mm x 16mm x 4mm.
The 3DC15-1000J is suitable for automotive passive keyless entry systems, automotive TPMS with wake up functions, access control, and tracking devices.
