| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

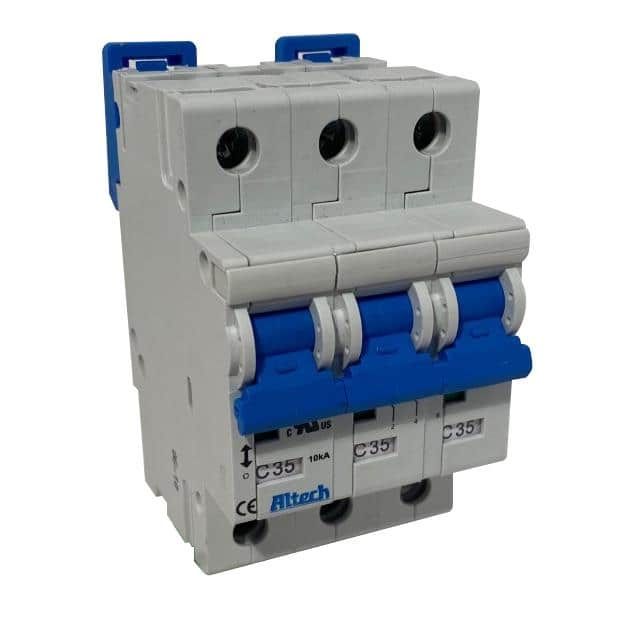

This Altech Corporation 3CU35R is a thermal magnetic circuit breaker designed for reliable circuit protection. It offers a current rating of 35A and a voltage rating of 277VAC, with a 10kA short circuit withstand capacity.
The breaker is designed for DIN rail mounting and features a lever actuator. It has a width of 17.5mm per pole and is suitable for copper wire connections rated for 60/75°C.
Key specifications include an operating temperature range of -25°C to 60°C and a storage temperature range of -25°C to 75°C. The electrical life is rated for 6,000 cycles, and the mechanical life for 10,000 cycles.
Applications for this type of supplementary protector include sensitive electronics, power supplies, and appliance circuits, operating on the load side of branch circuit protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 35A.
The voltage rating is 277V AC.
It uses DIN rail mounting.
The operating temperature range is -25 to 60°C.
The short circuit withstand rating is 10kA.
The electrical life is 6,000 cycles.
The mechanical life is 10,000 cycles.
