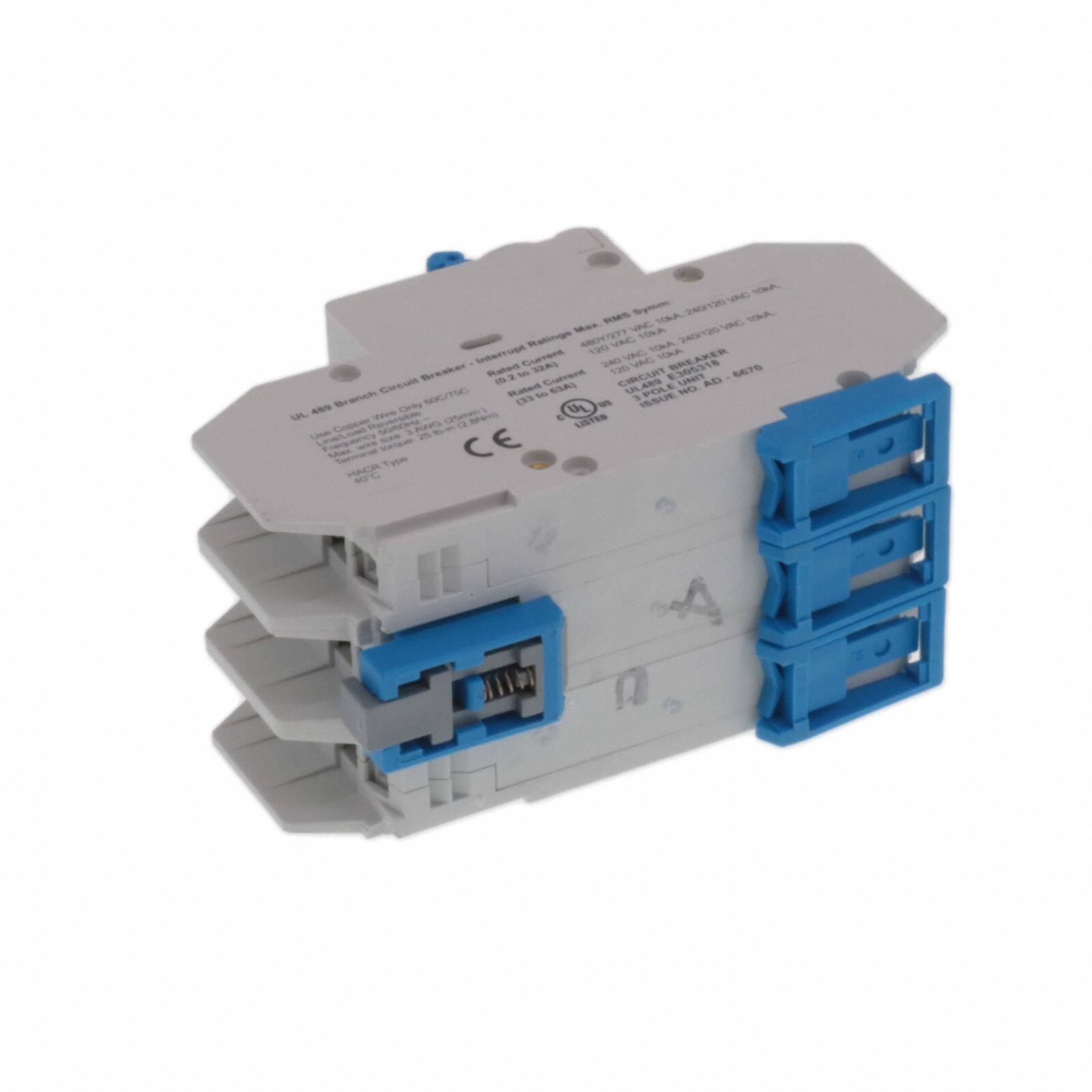

This Altech Corporation 3CU32L is a miniature molded case circuit breaker from the L-Series. It features a 3-pole configuration, a thermal magnetic trip type, and a 32A current rating.
The circuit breaker has a voltage rating of 480V and is approved by CE, cULus, and UL489. It is designed for DIN rail mounting and has an actuator type of Lever.
Key electrical specifications include a short circuit current rating (SCCR) of 10kA. The operating temperature range is -25°C to 60°C, and the storage temperature range is -25°C to 75°C. The terminal size accommodates 18 AWG to 10 AWG wire, with a terminal torque of 2.8 N m (25 lb-in.).
Environmental compliance includes RoHS3, MSL 1, and REACH unaffected status. The electrical life is rated for 6000 cycles, and the mechanical life for 100000 cycles. It is suitable for copper wire connections rated at 60/75°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 32A.
The voltage rating is 480V.
It has 3 poles.
It is designed for DIN rail mounting.
The operating temperature range is -25°C to 60°C.
The SCCR is 10kA.
