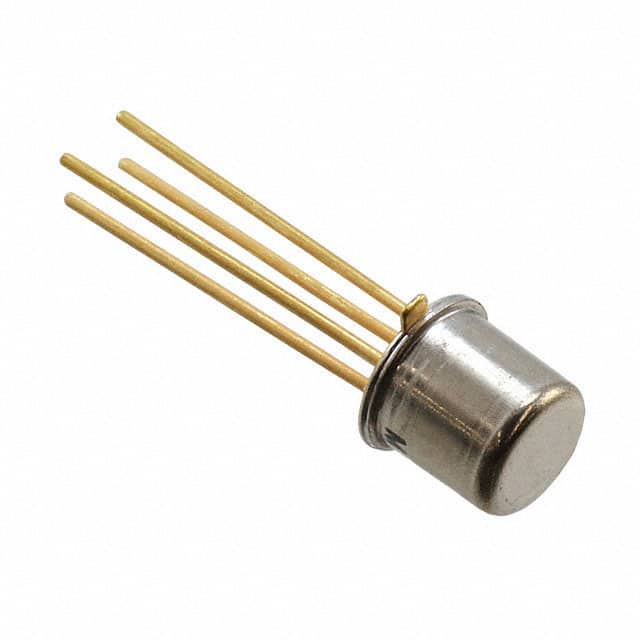

3C91C The TT Electronics/BI 3C91C is a high-reliability optoisolator offering 1kVDC electrical isolation. It features a TO-72 hermetically sealed package and a phototransistor output.
Mfr Part #:

3C91C

Available from 1 distributors
Mfr Name: TT Electronics/BI
TT Electronics/BI
The TT Electronics/BI 3C91C is a high-reliability optoisolator offering 1kVDC electrical isolation. It features a TO-72 hermetically sealed package and a phototransistor output.
✓ Total Stock: 3,362 pcs
$ Price Range: $0.99

3C91C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,362 pcs
On Request
3362 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3C91C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Input Type
Mounting Type
Number of Channels
Operating Temperature
Output Type
Supplier Device Package
Supplier Package
Turn On
Vce Saturation (Max)
Voltage
Wavelength
View Similar Products (0)

3C91C Description

Short technical summary and product information.

The 3C91C from TT Electronics/BI is a high-reliability optoisolator designed for applications requiring robust electrical isolation. It provides 1kVDC isolation between input and output, making it suitable for use in industrial equipment, medical devices, and office environments, especially where electrical noise or 'dirty' environments are a concern.



This optoisolator utilizes a phototransistor sensor type and is housed in a TO-72 hermetically sealed package. It offers a minimum current transfer ratio (CTR) of 30% at 10mA and a maximum CTR of 200% at 10mA. The device operates within a temperature range of -55°C to 125°C and has a maximum output current of 50 mA. The input type is DC, and it features a wavelength of 935nm.



Designed for through-hole mounting, the 3C91C has a lead length of 0.5 inches. Its specifications include a VCE saturation of 400mV maximum and rise/fall times of 9µs and 6µs respectively. The part is listed as RoHS3 Compliant and has an MSL rating of 1 Unlimited.

3C91C Quick Information

Product Type: Optoisolator
Canonical Name: 3C91C Optoisolator
Subcategory: Transistor Output Optoisolator

3C91C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3C91C Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3C91C Features

  • Provides 1kVDC electrical isolation.
  • TO-72 hermetically sealed package.
  • Phototransistor output type.
  • Wide operating temperature range.
  • RoHS3 compliant status.

3C91C Applications

  • High-voltage isolation applications.
  • Use in industrial equipment.
  • Suitable for medical devices.
  • Ideal for office equipment.

3C91C FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the 3C91C optoisolator?

The 3C91C optoisolator provides 1kVDC electrical isolation.

What is the operating temperature range for the 3C91C?

The operating temperature range for the 3C91C is -55°C to 125°C.

What is the minimum current transfer ratio (CTR) for the 3C91C?

The minimum current transfer ratio (CTR) for the 3C91C is 30% at 10mA.

What package type is the 3C91C optoisolator supplied in?

The 3C91C optoisolator is supplied in a TO-72 hermetically sealed package.

Is the 3C91C optoisolator RoHS compliant?

The 3C91C optoisolator is RoHS3 Compliant.
