Mfr Part #:

396-034-555-202

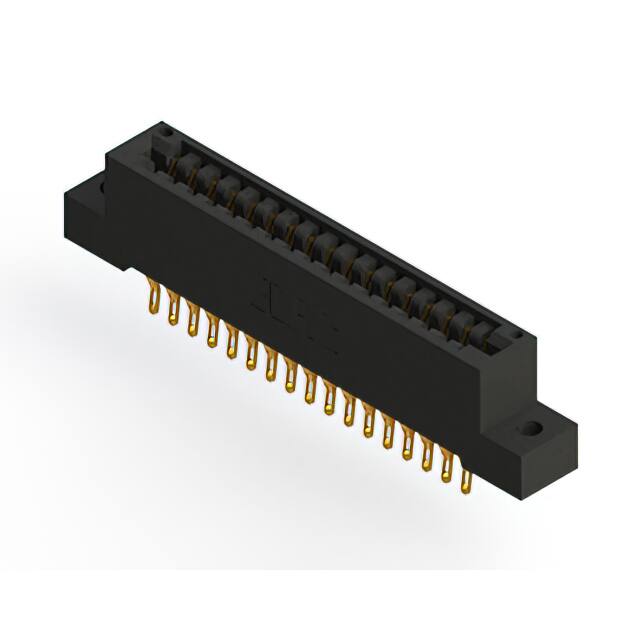

Name: 396-034-555-202
Brand: Edac
SKU: 396-034-555-202

Mfr Name: Edac

396 SERIES (.125" (3.18MM) CONTA

Stock on Request

396-034-555-202 Description

Short technical summary and product information.

396 SERIES (.125" (3.18MM) CONTA

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Edgeboard Connectors
Manufacturer Name	Edac
Card Thickness	0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Gender	Female
Mounting Type	Board Edge, Straddle Mount
Number of Positions	17
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.125" (3.18mm)
Read Out	Dual
Termination	Solder Eyelet(s)
