| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

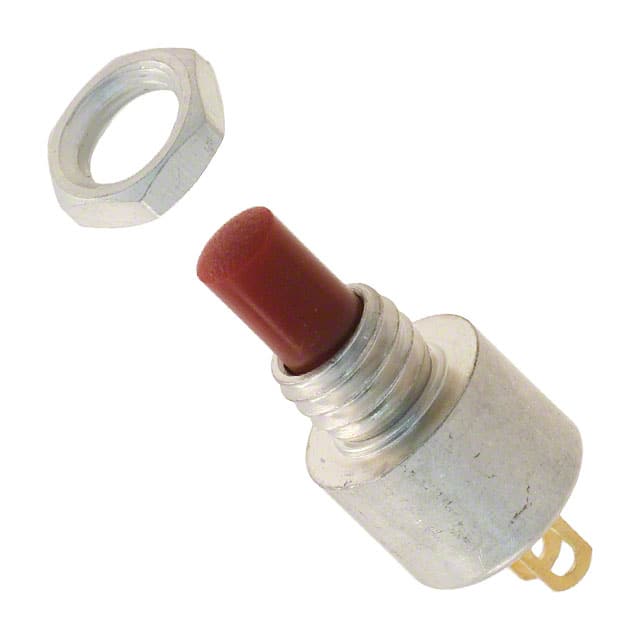

The Grayhill 39-1 is a standard pushbutton switch featuring Single Pole Single Throw Normally Open (SPST-NO) circuitry. It is designed for panel mounting with a rear mounting configuration and solder lug termination style. This switch operates at a voltage rating of 115V and has an electrical rating of 500mA at AC.
With a typical actuating force of 4 oz and a total travel of 0.130 inches, the 39-1 is built for reliability. It boasts a mechanical life cycle rating of 1,000,000 operations. The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions.
Typical applications for this pushbutton switch include security systems, industrial manufacturing equipment, casino gaming, audio/video equipment, avionics, fitness equipment, and test and measurement equipment. Its robust design and specifications ensure dependable performance in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Grayhill 39-1 pushbutton switch features SPST-NO (Single Pole Single Throw Normally Open) circuitry.
The switch is rated for 150 mA at 5 Vdc and 20 mA at 20 Vdc, and 1/2 Amp resistive at 115 Vac or 1/4 Amp resistive at 220 Vac.
The operating voltage for the 39-1 pushbutton switch is 115 V.
The typical actuating force for the 39-1 pushbutton switch is 4 oz.
The Grayhill 39-1 pushbutton switch has a mechanical life expectancy of 1,000,000 cycles.
The 39-1 pushbutton switch operates within a temperature range of -40°C to 85°C.
The Grayhill 39-1 pushbutton switch is designed for panel mounting with rear mounting configuration.
