| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Storage Temperature | |
| Tape & Reel | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

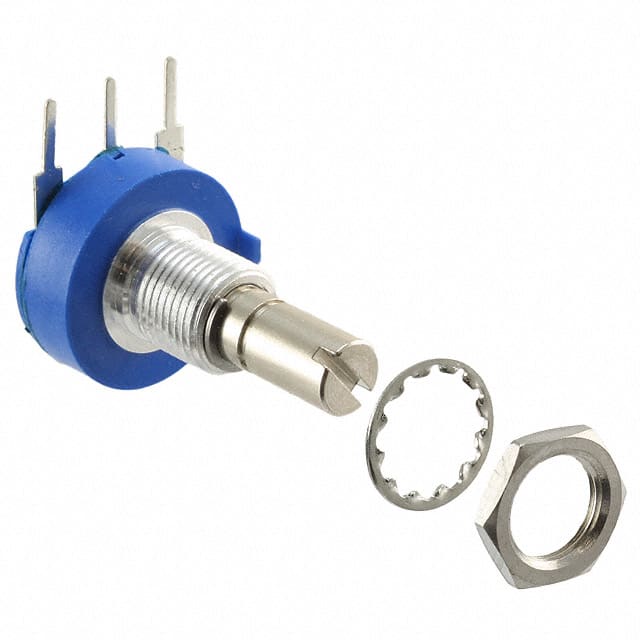

This Bourns 3852A-286-502AL is a single-turn rotary potentiometer from the 3851/3852/3856 series, featuring a cermet resistive element and a linear taper.
With a standard resistance of 5k Ohms and a tolerance of ±10%, this potentiometer is rated for 2W power at 70°C. It offers an effective electrical angle of 250° for linear tapers and 225° for audio tapers, with a total rotation of 280°.
The unit is designed for panel mounting with a 3/8-32 bushing thread and features PC pin termination. The actuator is slotted and has a diameter of 0.250" (6.35mm) with a length of 0.875" (22.23mm).
Environmental specifications include an operating temperature range of -1°C to +125°C and a storage temperature range of -65°C to +125°C. The component has a temperature coefficient of ±150ppm/°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standard resistance is 5k Ohms.
The power rating is 2W at 70°C for linear tapers.
The total resistance tolerance is ±10%.
It features a linear taper.
The operating temperature range is -1°C to +125°C.
It is designed for panel mounting.
The resistive material is Cermet.
