| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Absolute Minimum Resistance | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Contact Resistance Variation | |
| Dielectric Withstanding Voltage (Minimum @ 70,000 Feet) | |
| Dielectric Withstanding Voltage (Minimum @ Sea Level) | |
| Effective Electrical Angle | |
| Independent Linearity | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Operating Temperature Range | |
| Power (Watts) | |
| Power Rating (@ 70 °C) | |
| Power Rating (Unspecified condition) | |
| Resistance | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Standard Resistance Range | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Taper | |
| Temperature Coefficient | |
| Temperature Coefficient Over Storage Temperature Range | |
| Termination Style | |
| Tolerance | |
| Total Resistance Tolerance |

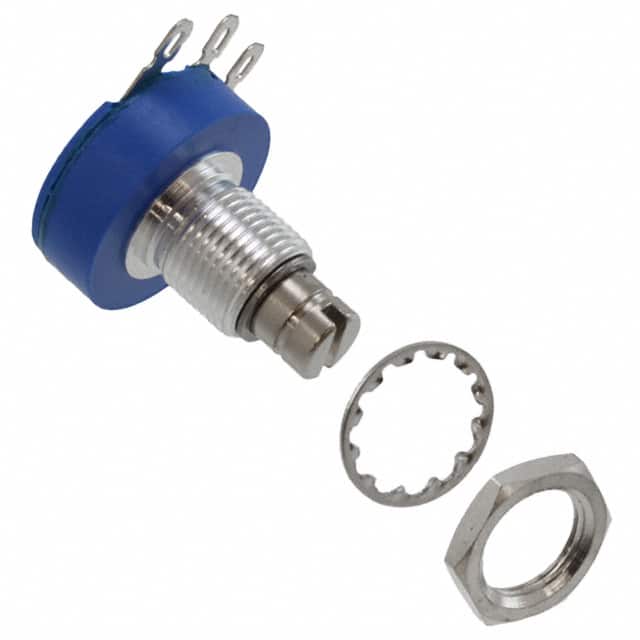

The Bourns 3852A-202-103AL is a single-turn rotary potentiometer featuring a cermet resistive element and a linear taper. It has a standard resistance of 10k Ohms with a total resistance tolerance of ±10%. The potentiometer is rated for 2 watts of power at +70°C and has an operating temperature range of -1°C to +125°C.
Designed for panel mounting, this potentiometer has a 3/8-32 bushing thread and a 0.250" (6.35mm) actuator diameter. The termination style is solder lug, and it features a slotted actuator. The effective electrical angle is 280°.
Environmental specifications include a RoHS3 compliant status and an MSL 1 rating. The datasheet indicates a standard resistance range from 100 ohms to 1 megohm for cermet elements, with an independent linearity of ±5% and a contact resistance variation of ±3% or 3 ohms, whichever is greater. Dielectric withstanding voltage is 900 VAC minimum at sea level, and insulation resistance is 1,000 megohms minimum.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3852A-202-103AL potentiometer has a resistance of 10k Ohms.
The power rating for the 3852A-202-103AL potentiometer is 2W at +70°C.
The total resistance tolerance for the 3852A-202-103AL potentiometer is ±10%.
The operating temperature range for the 3852A-202-103AL potentiometer is -1°C to +125°C.
The 3852A-202-103AL potentiometer uses a Linear taper.
The 3852A-202-103AL potentiometer is designed for Panel Mount.
