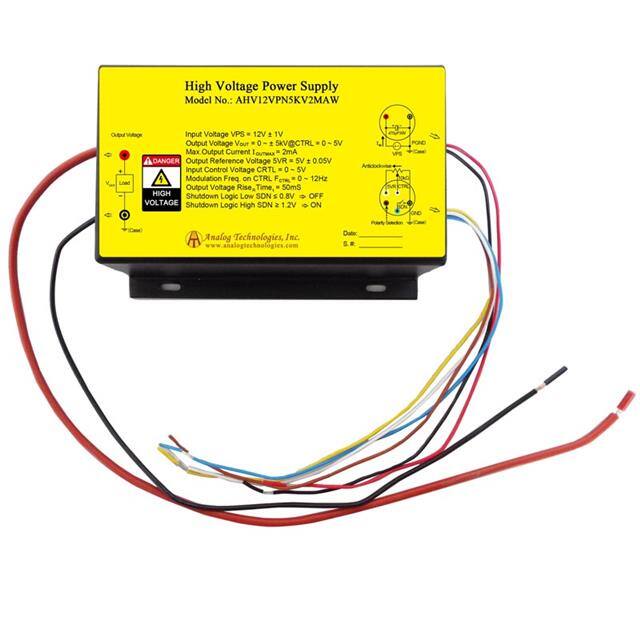

This Analog Technologies AHV12VPN5KV2MAW-ND is an enclosed, chassis mount DC-DC converter capable of high voltage output. It operates with an input voltage of 12V ± 1V and can deliver an output voltage ranging from 0 to ±5kV, controlled via a 0-5V input control voltage. The maximum output current is 2mA, with a reference voltage of 5V ± 0.05V.
Key features include electronic shutdown control, zero EMI emissions, and good heat sinking due to its metal enclosure. The operating temperature range is -20°C to 55°C. This power module is designed for DC-DC conversion from low voltage to high voltage, making it suitable for applications such as X-ray machines, spectral analysis, and semiconductor manufacturing equipment.
The dimensions are 140.0mm x 100.0mm x 55.0mm. It is RoHS3 compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage is 12V ± 1V.
The output voltage can be set from 0 to ±5kV.
The maximum output current is 2mA.
The operating temperature range is -20°C to 55°C.
It is a chassis mount type.
Yes, electronic shutdown control is available.
