| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Halogen Free | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Operating Temperature Range | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Type |

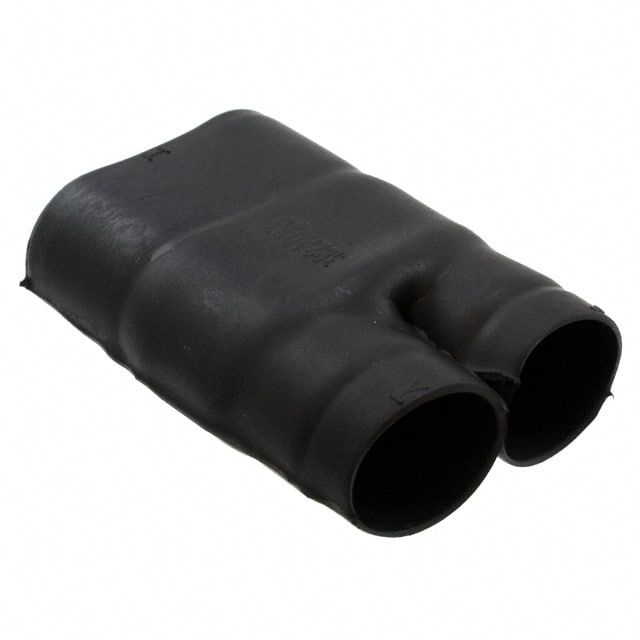

The TE Connectivity Raychem 382A023-25/86-0 is a heat shrinkable molded boot designed for cable transition and breakout applications. It features a Y shape with 3 branches and legs, providing a 2:1 (Y) breakout configuration for size 23 shells.
Constructed from a fluid resistant modified elastomer (Material Code 25), this boot is precoated with adhesive (Code 86) for a secure seal. It supports operating temperatures from -75 to 150 °C and is designed for long-term fluid exposure at high temperatures.
Critical dimensions include an inside diameter range (body) of 12.4–26.9 mm and (legs) of 6.1–13.2 mm each. The supplied large diameter is 26.92 mm, recovering to 12.40 mm; small diameters supplied at 13.21 mm, recovering to 6.10 mm. Large recovered length is 38.10 mm, small recovered length 43.18 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $58.17 | $58.17 |
| 10+ | $53.86 | $53.86 |
| 25+ | $51.32 | $51.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-75 to 150 °C.
Yes, it is EU RoHS Directive 2011/65/EU compliant.
Y shape with 3 branches and legs.
Yes, it includes an adhesive precoat.
Fluid resistant modified elastomer (material code 25).
