| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37,150 pcs
|
37150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Melting I²t | |
| Mounting Type | |
| Nominal Cold Resistance | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation (Typical @ 1.5×IN max) | |
| Response Time | |
| Voltage Drop (Typical @ 1.0×IN max) | |
| Voltage Rating |

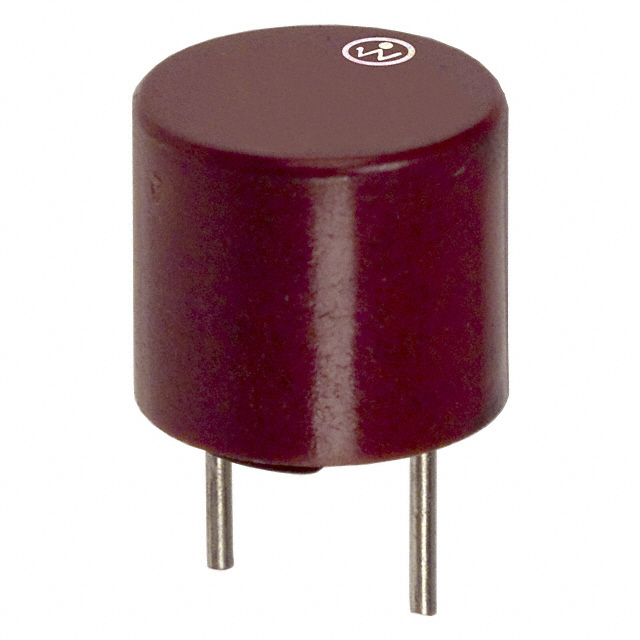

The Littelfuse 38216300410 is a 6.3A, 250VAC rated time-lag (slow blow) fuse from the 382 Series, designed for through-hole mounting in a radial can package. It provides a breaking capacity of 100A at 250VAC, making it suitable for applications requiring inrush current tolerance.
This fuse features a nominal cold resistance of 0.0076 ohms and a typical voltage drop of 65 mV at rated current. Its melting I²t is 148.84 A²s, and typical power dissipation at 1.5x rated current is 1400 mW. The operating temperature range is -40°C to 85°C.
The 382 Series is internationally approved with agency certifications including CQC, cURus, KC, PSE/JET, SEMKO, and VDE. It is halogen-free, lead-free, and RoHS compliant. The compact radial can design saves PCB space and is suitable for use in battery chargers, power supplies, consumer electronics, and industrial controllers.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.41 | $1.41 |
| 5+ | $1.17 | $1.17 |
| 10+ | $1.08 | $1.08 |
| 50+ | $0.90 | $0.90 |
| 100+ | $0.83 | $0.83 |
| 250+ | $0.74 | $0.74 |
| 500+ | $0.68 | $0.68 |
| 1,000+ | $0.63 | $0.63 |
| 5,000+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 6.3 A.
The voltage rating is 250 VAC.
The breaking capacity is 100 A at 250 VAC.
It is a slow blow (time-lag) fuse.
It is a through hole, radial can package.
The operating temperature range is -40°C to 85°C.
It is approved by CQC, cURus, KC, PSE/JET, SEMKO, and VDE.
