| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Diameter | |
| ESR (Equivalent Series Resistance) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Tolerance |

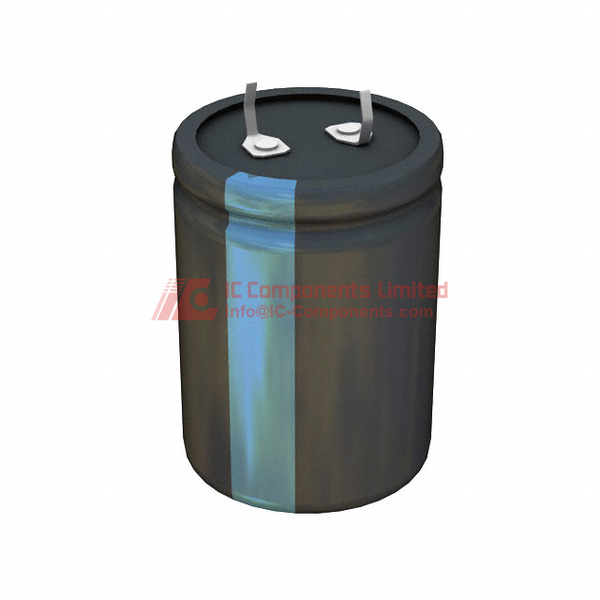

This Cornell Dubilier Electronics 380LQ272M160A042 is an aluminum electrolytic capacitor designed for general purpose applications. It features a capacitance of 2700 µF with a tolerance of ±20% and a rated voltage of 160V.
The capacitor operates within a temperature range of -40°C to 85°C, with a specified lifetime of 2000 hours at 85°C. Its equivalent series resistance (ESR) is 80 mOhm at 120 Hz. The ripple current capabilities are 5.45 A at low frequency (120 Hz) and 7.63 A at high frequency (20 kHz).
Packaged in a radial, can - snap-in configuration, this component is designed for through-hole mounting. Its dimensions include a diameter of 35mm and a height of 42mm, with a lead spacing of 10mm. The capacitor is supplied in bulk packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the 380LQ272M160A042 is 2700 µF.
The rated voltage of the 380LQ272M160A042 is 160 V.
The operating temperature range for the 380LQ272M160A042 is -40°C to 85°C.
The ESR (Equivalent Series Resistance) of the 380LQ272M160A042 is 80 mOhm at 120 Hz.
The ripple current at low frequency (120 Hz) for this capacitor is 5.45 A.
The lifetime of the 380LQ272M160A042 is 2000 hours at 85°C.
The mounting type for the 380LQ272M160A042 is Through Hole.
