Mfr Part #:

3808-0-15-15-02-27-10-0

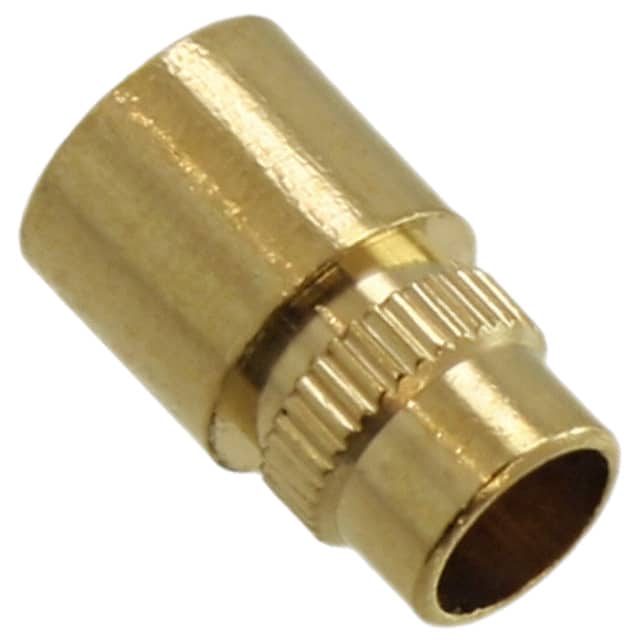

Name: 3808-0-15-15-02-27-10-0
Brand: Mill-Max Manufacturing
SKU: 3808-0-15-15-02-27-10-0

Description:

CONN PIN RCPT .040-.050 KNURL

Stock on Request

3808-0-15-15-02-27-10-0 Description

Short technical summary and product information.

CONN PIN RCPT .040-.050 KNURL

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Mill-Max Manufacturing

CONN PIN RCPT

Category	PC Pin Receptacles, Socket Connectors
Manufacturer Name	Mill-Max Manufacturing
Accepts Pin Diameter	0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Beryllium Copper
Flange Diameter	0.105" (2.67mm)
Length	0.175" (4.45mm)
Mounting Hole Diameter	0.090" (2.29mm)
Pin Hole Diameter	0.068" (1.73mm)
Socket Depth	0.175" (4.45mm)
Tail Type	No Tail
Termination	Press-Fit, Knurled
