Mfr Part #:

380598-1

Name: 380598-1
SKU: 380598-1

Mfr Name: TE Connectivity

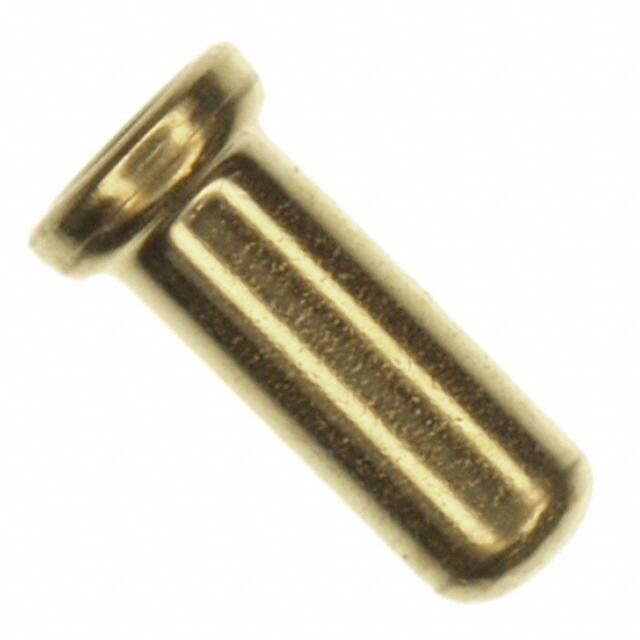

CONN PIN RCPT .018-.040 SOLDER

Stock on Request

380598-1 Description

Short technical summary and product information.

CONN PIN RCPT .018-.040 SOLDER

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

5380598-2

TE Connectivity

CONN PIN RCPT .018-.040 SOLDER

Category	PC Pin Receptacles, Socket Connectors
Manufacturer Name	TE Connectivity
Accepts Pin Diameter	0.018" ~ 0.040" (0.46mm ~ 1.02mm)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Beryllium Copper
Flange Diameter	0.125" (3.18mm)
Length	0.262" (6.65mm)
Mounting Hole Diameter	0.086" ~ 0.089" (2.18mm ~ 2.26mm)
Pin Hole Diameter	0.048" (1.22mm)
Socket Depth	0.145" (3.68mm)
Tail Type	No Tail
Termination	Solder
