| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Insulation Diameter | |
| Wire Type | |
| operating_temperature_range (Minimum/Maximum @ At 1 A) | |
| operating_temperature_range (Minimum/Maximum @ At 2 A) | |
| operating_temperature_range (Minimum/Maximum @ At 3 A) |

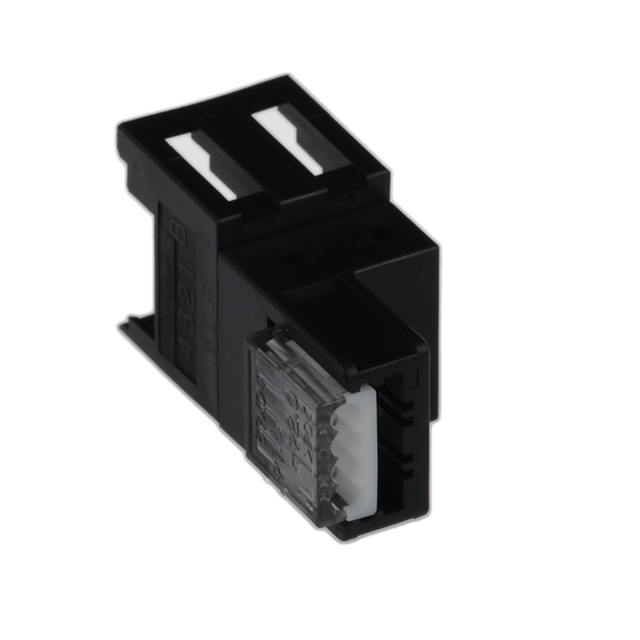

The 3M 37C04-2206-000 FL is a MINI-CLAMP Common Socket connector designed for 1-to-2 Y-branch wiring applications. It features 8 positions arranged in 2 rows with a 2.00mm pitch and 6.50mm row spacing. The connector uses IDC (Insulation Displacement Contact) termination for 20-22 AWG discrete wire with insulation diameters of 1.6mm to 2.0mm.
The socket is rated for 32V AC/DC maximum and 3.0A at 60°C, with current derated to 2A at 75°C and 1A at 85°C. Operating temperature range is -20°C to 85°C depending on current load.
It features a latch holder fastening type and is intended for free hanging (in-line) mounting. The connector body is grey and includes two parallel plug connections for branching one cable into two.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.05 | $7.05 |
| 10+ | $5.99 | $5.99 |
| 25+ | $5.62 | $5.62 |
| 50+ | $5.35 | $5.35 |
| 100+ | $5.09 | $5.09 |
| 300+ | $4.71 | $4.71 |
| 500+ | $4.55 | $4.55 |
| 1,000+ | $4.33 | $4.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions arranged in 2 rows.
The pitch is 2.00mm (0.079") with a row spacing of 6.50mm (0.256").
The maximum current rating is 3.0A at 60°C, derated to 2A at 75°C and 1A at 85°C.
The maximum voltage rating is 32V AC/DC.
It is designed for Free Hanging (In-Line) mounting with a latch holder.
It supports 20-22 AWG discrete wire with insulation diameter of 1.6mm to 2.0mm.
The operating temperature range is -20°C to 85°C at 1A, -20°C to 75°C at 2A, and -20°C to 60°C at 3A.
