| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

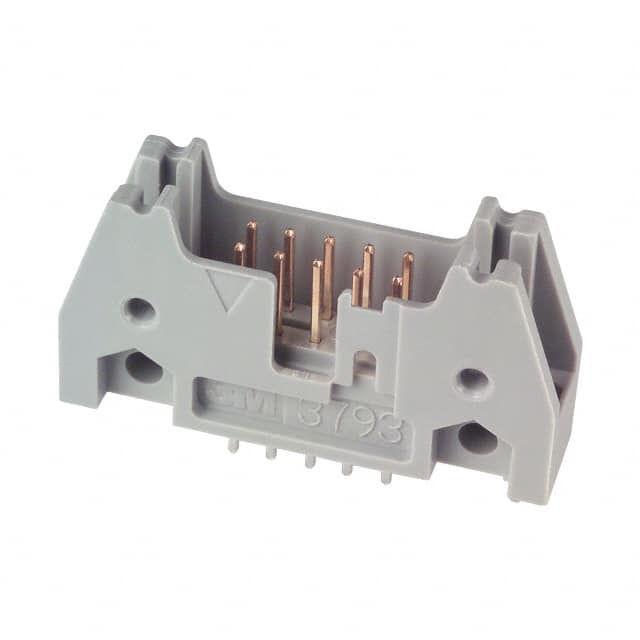

The 3M 3793-6002 is a 10-position, 2-row, shrouded header (male pin) connector designed for board-to-board or cable applications. It features a 2.54mm pitch and 2.54mm row spacing, with through hole solder termination for robust mechanical attachment. The header is fully shrouded with four walls, includes a keying slot and mounting flange, and uses a push-pull fastening type. The insulation is black glass-filled PBT (polybutylene terephthalate) with a UL94 V-0 flammability rating. The contacts are made of copper alloy with a tin-lead finish (30µin) and have a square shape. The overall contact length is 16.56mm, with a contact length of 2.84mm and an insulation height of 17.27mm. Electrical rating is 1A per contact, with an operating temperature range of -55°C to 105°C. The connector is suitable for use in a wide variety of industrial and commercial electronic assemblies where a reliable, polarized connection is required.
10 positions, all loaded, in 2 rows.
2.54mm (0.100 inches).
1A per contact.
Through hole with solder termination.
-55°C to 105°C.
Tin-lead with 30µin plating thickness.
Yes, it is shrouded with 4 walls and includes a keying slot and mounting flange.
