| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Fin Height | |
| Lead Style | |
| Length | |
| Material | |
| Material Finish | |
| Mounting Type | |
| Package Cooled | |
| Power Dissipation @ Temperature Rise | |
| Shape | |
| Thermal Resistance @ Forced Air Flow | |
| Thermal Resistance @ Natural | |
| Type | |
| Width |

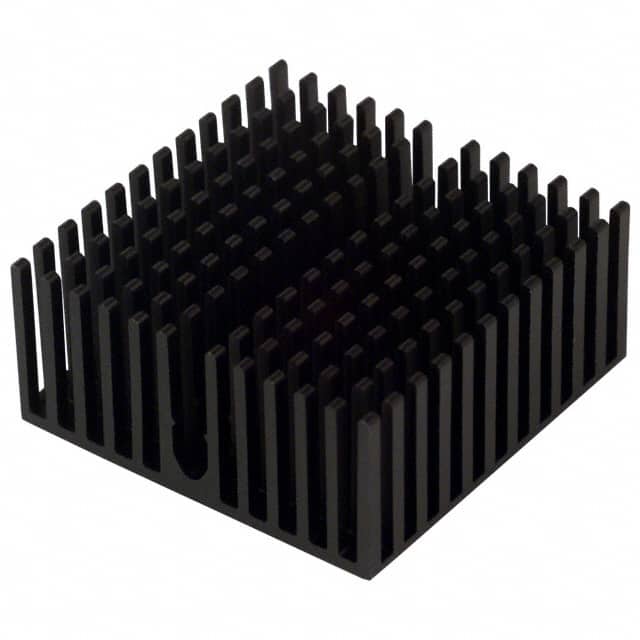

The 375024B00032G is a square pin fin heat sink designed for cooling BGA packages. It measures 40.00mm in length and 40.01mm in width with a fin height of 18.00mm. The heat sink is constructed from aluminum with a black anodized finish.
Thermal performance is rated at 12.00°C/W under natural convection and 4.30°C/W at 200 LFM forced air flow. Power dissipation is 2.0W at a 30°C temperature rise. The heat sink is top mounted and includes thermal tape/adhesive for attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.92 | $3.92 |
| 10+ | $3.48 | $3.48 |
| 25+ | $3.31 | $3.31 |
| 50+ | $3.19 | $3.19 |
| 100+ | $3.05 | $3.05 |
| 450+ | $3.02 | $3.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12.00°C/W under natural convection and 4.30°C/W at 200 LFM forced air flow.
40.00mm length, 40.01mm width, 18.00mm fin height.
Aluminum with a black anodized finish.
Top mount using included thermal tape/adhesive.
2.0W at a 30°C temperature rise.
