| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
672 pcs
|
672 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Fin Height | |
| Length | |
| Material | |
| Material Finish | |
| Package Cooled | |
| Power Dissipation @ Temperature Rise | |
| Shape | |
| Thermal Resistance @ Forced Air Flow | |
| Thermal Resistance @ Natural | |
| Type | |
| Width |

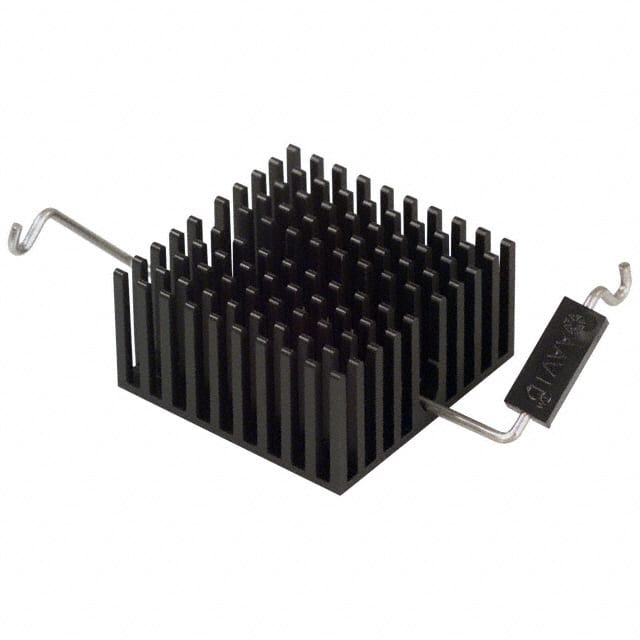

The 374724B60024G is a square pin fin heat sink designed for BGA packages, manufactured by Aavid, Thermal Division of Boyd Corporation. It measures 35.00mm (1.378") on each side with a fin height of 18.00mm (0.709"), constructed from black anodized aluminum for efficient heat dissipation.
Thermal performance is specified at 15.30°C/W under natural convection and 5.20°C/W with forced air flow at 200 LFM. The heat sink attaches to the BGA package using solder anchor mounting, providing a secure mechanical and thermal connection.
This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is suitable for applications requiring passive or low-airflow cooling of BGA devices in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.26 | $5.26 |
| 10+ | $4.64 | $4.64 |
| 25+ | $4.47 | $4.47 |
| 50+ | $4.29 | $4.29 |
| 100+ | $4.05 | $4.05 |
| 168+ | $3.86 | $3.86 |
| 504+ | $3.77 | $3.77 |
| 1,008+ | $3.46 | $3.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15.30°C/W under natural convection and 5.20°C/W with forced air at 200 LFM.
35.00mm x 35.00mm (1.378" x 1.378") with a fin height of 18.00mm (0.709").
Aluminum with a black anodized finish.
Using solder anchor attachment.
Yes, it is RoHS3 compliant.
3.0W at a 50°C temperature rise.
