| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Features | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage |

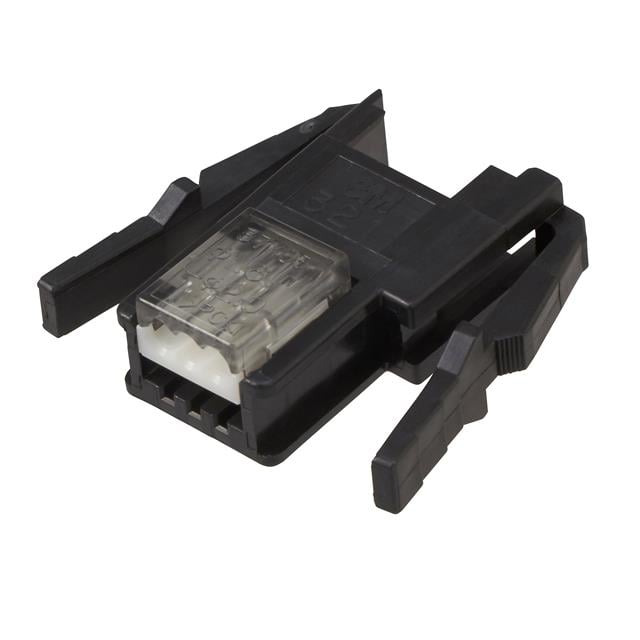

This 3M 373 Series Mini-Clamp Socket (part number 37303-2206-0P0 FL 100) is a 3-position, single-row receptacle designed for wiremount and panel mount applications. It uses insulation displacement contact (IDC) termination to accept 20-22 AWG stranded wire without special preparation.
The connector features a closed-end design with a panel-mount latch. Contacts are copper alloy with 8µin gold plating on the wiping area plus nickel underplating and nickel IDC plating. The housing is glass-reinforced thermoplastic rated UL 94V-0. Electrical rating is 3.0A per contact at 32V DC.
Temperature rating varies with current: -20°C to +85°C at 1.0A, -20°C to +75°C at 2.0A, and -20°C to +60°C at 3.0A. Insulation resistance exceeds 1×10⁶ Ω at 600V DC. Minimum withstanding voltage is 1000V RMS at sea level.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.84 | $3.84 |
| 10+ | $3.27 | $3.27 |
| 25+ | $3.06 | $3.06 |
| 50+ | $2.92 | $2.92 |
| 100+ | $2.78 | $2.78 |
| 300+ | $2.57 | $2.57 |
| 500+ | $2.48 | $2.48 |
| 1,000+ | $2.36 | $2.36 |
| 2,500+ | $2.21 | $2.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inches).
The current rating is 3.0 A per contact.
The voltage rating is 32 V.
This connector supports panel mounting.
It accepts 20-22 AWG discrete stranded wire.
At 3.0A, the ambient temperature range is -20°C to +60°C.
The contact wiping area has 0.203µm (8µin) minimum gold with lubricant, over a 2.54µm minimum nickel underplating. The IDC area is nickel.
