| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

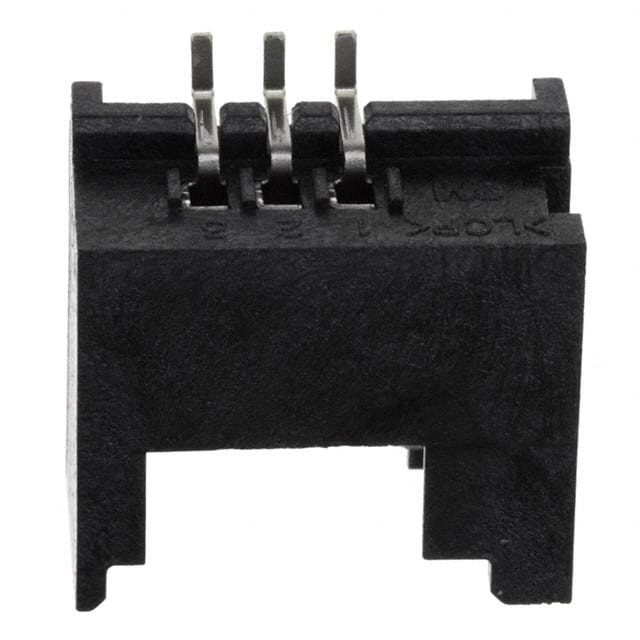

The 3M 37203-12E0-003 PL is a 3-position, 2.00mm pitch surface mount right angle receptacle from the Mini-Clamp Socket 372 series. It features female socket contacts with gold plating (0.2µm minimum in wiping area) over nickel underplating, ensuring reliable electrical performance and corrosion resistance. The connector uses a latch holder fastening type for secure mating with 371 series headers.
Electrical ratings include a maximum current of 3A (derated to 2A at 75°C and 1A at 85°C ambient) and a voltage rating of 32V. Insulation resistance is 1,000 MΩ minimum at 500 VDC, and withstanding voltage is 1,000 VRMS for 1 minute. The operating temperature range varies with current: -20°C to +85°C at 1A, -20°C to +75°C at 2A, and -20°C to +60°C at 3A. UL temperature rating is 65°C at 3A/32V.
The connector is designed for board-to-cable/wire applications and is surface mount with right angle orientation. It is packaged in tape and reel or tray. The insulation is black LCP with UL94 V-0 flammability rating. The part is RoHS compliant (RIA E1 & C1) and MSL level 1 per J-STD-020. Mating cycles are rated at 300 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.29 | $3.29 |
| 10+ | $2.80 | $2.80 |
| 100+ | $2.37 | $2.37 |
| 500+ | $2.12 | $2.12 |
| 1,000+ | $2.01 | $2.01 |
| 5,000+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.00mm (0.079 inches).
Maximum 3A, derated to 2A at 75°C and 1A at 85°C ambient.
32V.
Surface mount, right angle.
-20°C to +85°C at 1A, -20°C to +75°C at 2A, -20°C to +60°C at 3A.
Gold with 0.2µm minimum in wiping area.
