| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating IDC | |
| Contact Plating Underplating | |
| Contact Plating Wiping Area | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| UL | |
| Voltage Rating | |
| Wire Accommodation | |
| Wire Gauge | |
| Wire Insulation | |
| Wire Type | |
| Withstanding Voltage | |
| operating_temperature_range (Minimum/Maximum @ 1.0 A max) | |
| operating_temperature_range (Minimum/Maximum @ 2.0 A max) | |
| operating_temperature_range (Minimum/Maximum @ 3.0 A max) |

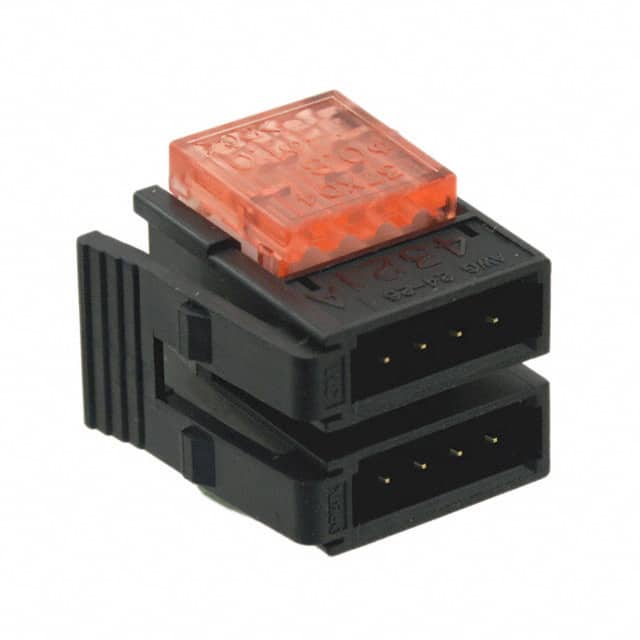

The 3M 37108-3101-0W0 FL is an 8-position, 2-row rectangular connector plug from the Mini-Clamp 371 series. It features male pin contacts with 0.2 \u00b5m minimum gold plating on the wiping area over a 2.54 \u00b5m nickel underplate, providing reliable electrical performance.
The connector uses insulation displacement contact (IDC) termination for 24-26 AWG stranded wire, accommodating annealed copper, tinned, or tin overcoated conductors. The housing is glass reinforced thermoplastic with UL 94V-0 flammability rating, and a transparent thermoplastic cover. The black body includes a latch lock fastening mechanism for secure mating.
Rated for 3.0 A at 32 V, the plug is suitable for signal and power applications requiring compact wire-to-board connections. Its closed end design and integrated cable retention simplify assembly without special wire preparation.
The pitch is 2.00 mm (0.079 inches).
The current rating is 3.0 A, with derating at higher temperatures: 2.0 A max from -20 to +75 °C, 1.0 A max from -20 to +85 °C.
It accepts 24-26 AWG stranded wire.
Free hanging (in-line) with latch lock fastening.
32 V.
RoHS compliance is listed as RoHS3 compliant but not verified from an authoritative source.
