| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Maximum @ At 60 °C ambient, 3.0 A max) | |
| Current Rating (Maximum @ At 75 °C ambient, 2.0 A max) | |
| Current Rating (Maximum @ At 85 °C ambient, 1.0 A max) | |
| Current Rating (Maximum @ UL rating at 65 °C ambient, 3.0 A) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range (Minimum/Maximum @ At 1.0 A max) | |
| Operating Temperature Range (Minimum/Maximum @ At 2.0 A max) | |
| Operating Temperature Range (Minimum/Maximum @ At 3.0 A max) | |
| Operating Temperature Range (Minimum/Maximum @ UL rating at 3.0 A) | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage |

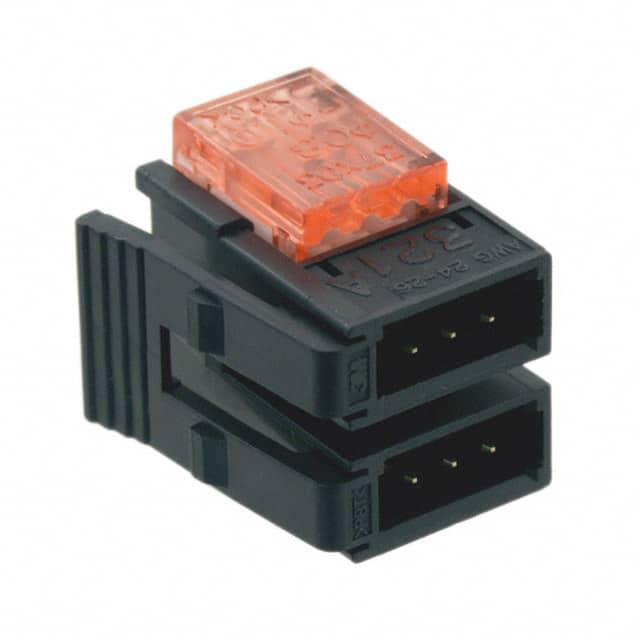

The 3M 37106-3101-0W0 FL is a 6-position plug connector from the 371 Series Mini-Clamp family. It utilizes IDC (Insulation Displacement Contact) termination for quick and reliable wire connections without special preparation. The connector features a 2.00mm pitch and 2 rows with 6.50mm row spacing. Contacts are male pins with gold plating (0.203µm) over nickel underplating. The housing is black glass reinforced thermoplastic with UL 94V-0 flammability rating. The connector is designed for free hanging (in-line) mounting with a latch lock fastening system. It accepts 24-26 AWG discrete wires with flexible vinyl or other insulation types. Electrical ratings include 3.0A current at 60°C ambient (derated at higher temperatures) and 32V voltage rating. Insulation resistance is >1×10⁶Ω at 600 VDC, withstanding voltage 1,000 VRMS. Operating temperature range is -20°C to +85°C depending on current. The closed end feature provides additional protection. This connector is suitable for wiring supplied from Japanese and Asian suppliers, as noted in the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.78 | $4.78 |
| 10+ | $4.06 | $4.06 |
| 25+ | $3.80 | $3.80 |
| 50+ | $3.62 | $3.62 |
| 100+ | $3.45 | $3.45 |
| 300+ | $3.19 | $3.19 |
| 500+ | $3.08 | $3.08 |
| 1,000+ | $2.93 | $2.93 |
| 2,500+ | $2.75 | $2.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.00mm.
3.0A maximum at 60°C ambient, derated to 2.0A at 75°C and 1.0A at 85°C.
32V.
Free hanging (in-line).
24-26 AWG discrete wires.
IDC (Insulation Displacement Contact).
