| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance (Minimum @ 600 VDC) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage (Minimum @ Sea Level) |

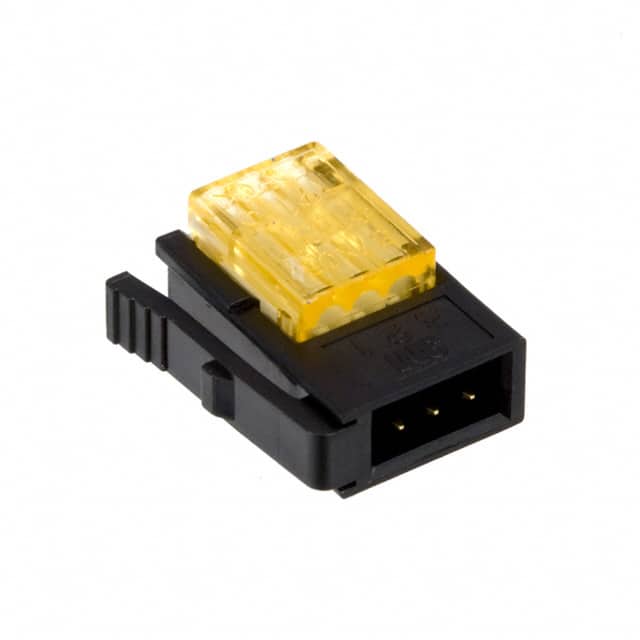

The 3M 37103-B163-00E MB is a 3-position, 1-row IDC plug connector from the 371 Series Mini-Clamp II family. It features a 2.00mm pitch and is designed for free-hanging (in-line) mounting. The connector accepts 24-26 AWG discrete wire and uses IDC termination for quick, reliable connections without special tooling.
Electrical ratings include 3.0A current and 32V voltage, with insulation resistance greater than 1x10^6 Ω at 600VDC and withstanding voltage of 1000V RMS at sea level. Contacts are made of copper alloy with gold plating on the wiping area and matte tin on the IDC section, ensuring reliable signal integrity.
The connector body is constructed from glass reinforced thermoplastic with UL 94V-0 flammability rating, and the cover is transparent thermoplastic. It features a latch lock fastening mechanism for secure mating and a closed end design. Operating temperature range is -20°C to 85°C.
This connector is RoHS compliant as per the datasheet. It is suitable for applications requiring compact, reliable wire-to-board connections in industrial, automotive, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.00mm (0.079 inches).
3.0 Amps.
32 Volts.
Free Hanging (In-Line).
-20°C to 85°C.
Yes, RoHS compliant per datasheet.
