| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,809 pcs
|
26809 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Lead Style | |
| Melting I²t | |
| Mounting Type | |
| Nominal Cold Resistance | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation | |
| Response Time | |
| SVHC Present | |
| Size / Dimension | |
| Voltage Drop | |
| Voltage Rating |

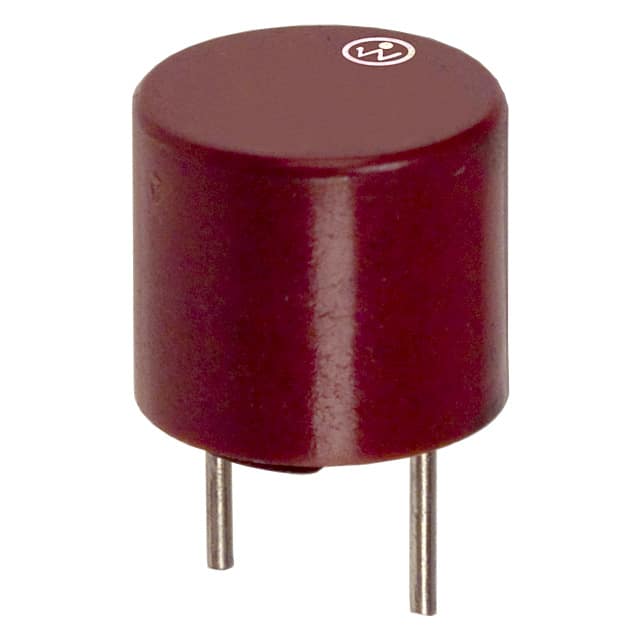

The Littelfuse 370 Series 37002000430 is a sub-miniature TR5 fast-acting fuse designed for board mount applications. Rated at 200 mA with a voltage rating of 250 VAC, it provides reliable overcurrent protection in a compact radial through-hole package (8.50mm x 8.00mm).
The fuse features a nominal cold resistance of 1.69 Ω, a maximum voltage drop of 465 mV at rated current, and a maximum power dissipation of 190 mW at 1.5 times rated current. The melting I²t is 0.03 A²s, indicating a fast response suitable for protecting sensitive components.
This part is approved by CCC, cURus, SEMKO, and VDE, and meets RoHS and halogen-free requirements. It is suitable for use in battery chargers, consumer electronics, power supplies, and industrial controllers within an operating temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
| 5+ | $1.05 | $1.05 |
| 10+ | $0.97 | $0.97 |
| 50+ | $0.81 | $0.81 |
| 200+ | $0.69 | $0.69 |
| 400+ | $0.63 | $0.63 |
| 600+ | $0.60 | $0.60 |
| 1,000+ | $0.57 | $0.57 |
| 5,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 200 mA.
The voltage rating is 250 V AC.
The breaking capacity at 250 VAC is 50 A.
It is a fast blow (fast acting) fuse.
The fuse is in a radial, can, vertical through-hole package.
The melting I²t is 0.03 A²s at 10×IN.
The operating temperature range is -40°C to 85°C.
