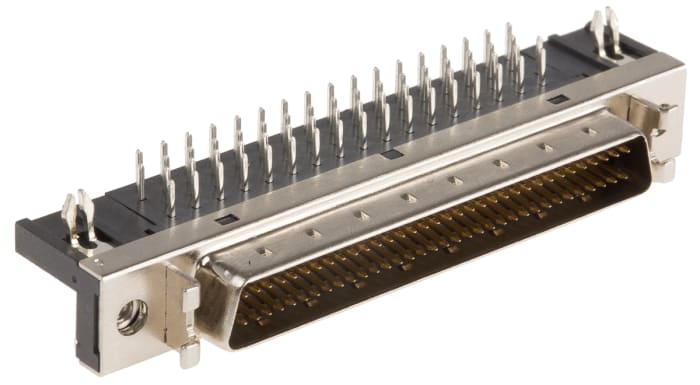

3700-0121-01 This MH Connectors SCSI connector features 68 contacts, a right-angle orientation, and through-hole mounting. It has a 2.54mm pitch and is rated for 500mA current and 500V ac voltage.
Mfr Part #:

3700-0121-01

Available from 1 distributors
Mfr Name: RS
RS
This MH Connectors SCSI connector features 68 contacts, a right-angle orientation, and through-hole mounting. It has a 2.54mm pitch and is rated for 500mA current and 500V ac voltage.
✓ Total Stock: 2 pcs
$ Price Range: $0.99

3700-0121-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3700-0121-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Contact Plating
Country of Origin
Current Rating
Failure Rate
Housing Material
Mounting Type
Number of Contacts
Orientation
Pitch
Termination Style
Voltage Rating
View Similar Products (0)

3700-0121-01 Description

Short technical summary and product information.

The MH Connectors 3700-0121-01 is a 68-way SCSI connector designed for through-hole mounting with a right-angle orientation. It features a 2.54mm pitch and a male connector gender. The contacts are made of Phosphor Bronze with Gold plating, ensuring reliable connections.



This connector is suitable for applications requiring a 500mA current rating and operates within a temperature range of -55°C to 85°C. The housing is constructed from Liquid Crystal Polymer. It is designed to meet ANSI requirements for SCSI 2, SCSI 2 wide, and SCSI 3 standards.



This component is RoHS3 compliant and has an MSL of 1 Unlimited. It is manufactured in Taiwan, Province Of China.

3700-0121-01 Quick Information

Product Type: SCSI Connector
Series: SCSI
Canonical Name: MH Connectors SCSI 68 Way Male Right Angle Through Hole SCSI Connector
Subcategory: SCSI Connector

3700-0121-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3700-0121-01 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3700-0121-01 Features

  • 68-way SCSI connector with right-angle orientation.
  • Through-hole mounting for secure PCB attachment.
  • Phosphor Bronze contacts with Gold plating.
  • Rated for 500mA current and 500V ac voltage.
  • Operates from -55°C to 85°C.

3700-0121-01 Applications

  • Ideal for SCSI interface connections.
  • Suitable for industrial automation systems.
  • Used in data acquisition hardware.
  • Applicable in legacy computing systems.

3700-0121-01 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the 3700-0121-01 connector?

The voltage rating is 500V ac.

How many contacts does the 3700-0121-01 have?

It has 68 contacts.

What is the operating temperature range of this connector?

The operating temperature range is from -55°C to 85°C.

What material is used for the contacts?

The contacts are made of phosphor bronze with gold plating.

What is the mounting type for this connector?

It features through hole mounting with solder termination.

Is this connector RoHS compliant?

Yes, it is RoHS compliant.
