| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating Underplating | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Temperature Rating | |
| Termination | |
| Wire Accommodation | |
| Withstanding Voltage |

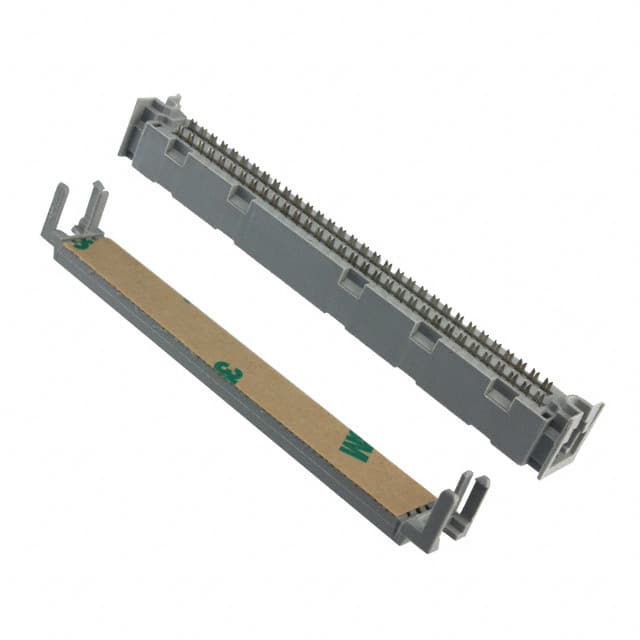

The 3M 3695-0000 is a DIN 41612 Type C plug connector from the 3695 series. It has 96 positions with 64 positions loaded (Rows A and C filled). The connector uses IDC (Insulation Displacement Contact) termination for flat ribbon cable, accommodating 26-28 AWG stranded or solid wire, and 30 AWG solid wire.
Electrical specifications include a current rating of 1 A, insulation resistance greater than 1×10^12 Ω at 500 VDC, and withstanding voltage of 1000 VAC at sea level. The operating temperature range is -55°C to +125°C.
The connector features gold-plated contacts (30 μin over 50 μin nickel underplating) for reliable connections. The housing is made of glass-filled polyester (PBT) with UL 94V-0 flammability rating, colored gray. It includes a feed-through feature for daisy-chaining and accepts the 3435-1 keying plug system.
Mounting is free hanging (in-line), suitable for cable-to-board applications. The connector mates with DIN 41612 Type C sockets. It is RoHS compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 50+ | $16.36 | $16.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions total, with 64 positions loaded (Rows A and C filled).
2.54 mm (0.100 inches).
1 A.
Free hanging (in-line).
IDC (Insulation Displacement Contact).
-55°C to +125°C.
26-28 AWG stranded or solid, and 30 AWG solid.
