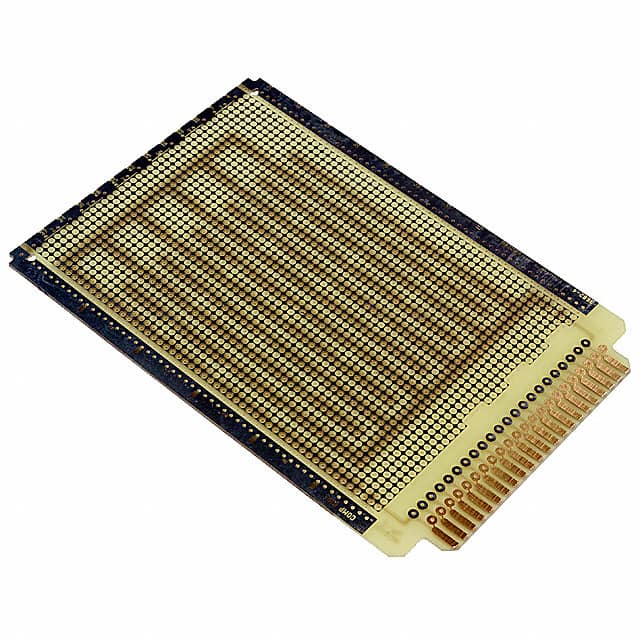

Mfr Part #:

3682-4

Mfr Name: Vector Electronics

Description:

PLUGBOARD CARD EDGE NPTH

Stock on Request

3682-4 Description

Short technical summary and product information.

PLUGBOARD CARD EDGE NPTH

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

3662-9

Vector Electronics

PLUGBOARD CARD EDGE NPTH

3662A6

Vector Electronics

PLUGBOARD CARD EDGE NPTH

Category	Prototype Boards Perforated
Manufacturer Name	Vector Electronics
Board Thickness	0.062" (1.57mm) 1/16"
Circuit Pattern	Pad Per Hole (Round), Ground Plane
Edge Contacts	44 @ 0.156" (3.96mm)
Hole Diameter	0.042" (1.07mm)
Pitch	0.100" (2.54mm)
Plating	Non-Plated Through Hole (NPTH)
Proto Board Type	Plugboard, Card Edge
Size	6.50" L x 4.50" W (165.1mm x 114.3mm)
