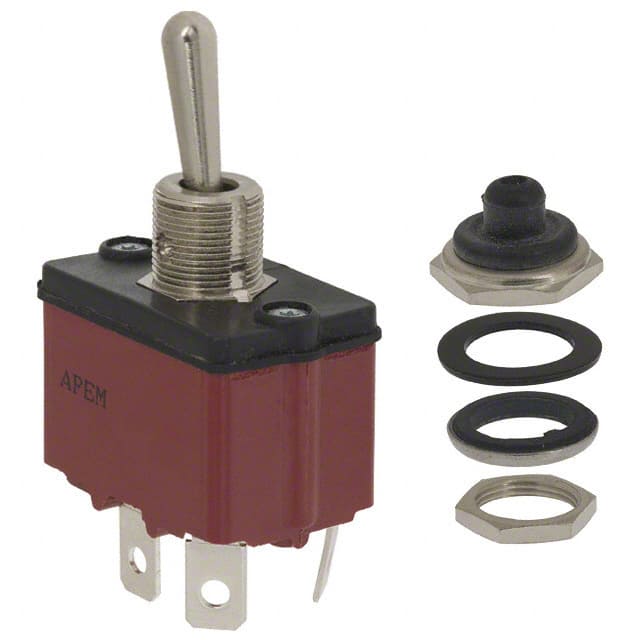

3641NF/2 The APEM Inc. 3641NF/2 is a robust toggle switch designed for efficient electrical circuit control. It features a Double Pole Single Throw (DPST) configuration and is sealed to IP67 standards.
Mfr Part #:

3641NF/2

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. 3641NF/2 is a robust toggle switch designed for efficient electrical circuit control. It features a Double Pole Single Throw (DPST) configuration and is sealed to IP67 standards.
✓ Total Stock: 33 pcs
$ Price Range: $0.75

3641NF/2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
33 pcs
On Request
33 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3641NF/2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Contacts
Current Rating (Amps)
Features
Illumination
Insulation Resistance
Mounting Type
Number of Poles
Operating Temperature
Panel Cutout Dimensions
Panel Thickness
Switch Function
Termination Style
Torque
Voltage Rating
View Similar Products (0)

3641NF/2 Description

Short technical summary and product information.

The APEM Inc. 3641NF/2 is a reliable toggle switch suitable for various electrical circuit control applications. This DPST (Double Pole Single Throw) switch operates with a maximum current rating of 12A at 28VDC and features quick connect terminals for easy installation.



Designed for durability, the 3641NF/2 boasts an IP67 sealing rating, making it resistant to dust and water ingress. It operates within a temperature range of -40°C to +85°C and is designed for panel mounting with a standard M12 x 0.75 bushing thread and a 12.20mm diameter panel cutout.



Key electrical specifications include a maximum initial contact resistance of 10 mΩ, an insulation resistance of 1,000 MΩ min. at 500VDC, and a dielectric strength of 2,500 Vrms between terminals. The switch has an electrical life of 10,000 cycles at full load. Its actuator is a standard round type with a length of 17.50mm, and it is non-illuminated.

3641NF/2 Quick Information

Product Type: Toggle Switch
Canonical Name: APEM Inc. 3641NF/2 Toggle Switch
Subcategory: Toggle Switches

3641NF/2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3641NF/2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

3641NF/2 Features

  • Double Pole Single Throw (DPST) configuration.
  • Rated for 12A at 28VDC with resistive load.
  • Sealed to IP67 for environmental protection.
  • Panel mount design with quick connect terminals.
  • Operates reliably between -40°C and +85°C.

3641NF/2 Applications

  • Used for electrical circuit control.
  • Suitable for harsh environmental conditions.
  • Ideal for panel-mounted applications.
  • Requires quick connect termination.

3641NF/2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current and voltage rating of the APEM Inc. 3641NF/2 toggle switch?

The switch has a maximum current rating of 12A with a resistive load at 28VDC.

What is the operating temperature range for the 3641NF/2 toggle switch?

The operating temperature range is -40°C to +85°C.

Is the APEM Inc. 3641NF/2 toggle switch sealed?

Yes, the switch is sealed to IP67 according to IEC 60529.

What type of terminals does the 3641NF/2 switch use?

It uses quick connect terminals measuring 0.250" (6.3mm).

What is the circuit configuration of the 3641NF/2 toggle switch?

The switch has a DPST (Double Pole Single Throw) circuit configuration.
