| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Contact Finish | |
| Contact Material | |
| ELV | |
| Features | |
| Halogen Free | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

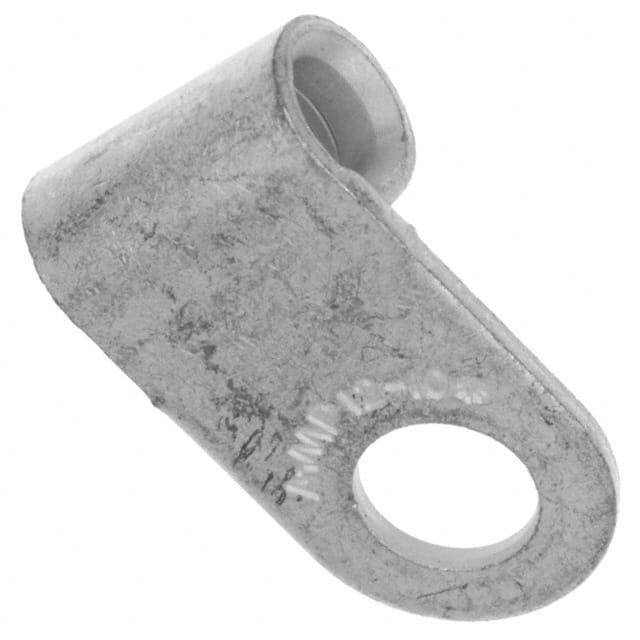

The TE Connectivity 36271 is a SOLIS flag ring terminal designed for 10-12 AWG wire with a #10 stud size. It features a circular terminal type with a brazed seam and serrated termination for secure connections. The terminal is non-insulated and constructed from copper with a tin finish, offering good conductivity and corrosion resistance.
This terminal supports free hanging (in-line) and right angle mounting, with crimp and flag termination styles. It has a thickness of 0.99mm, a width of 9.53mm, and a length of 17.83mm. The design includes a brazed seam and serrated termination to enhance mechanical strength and electrical reliability.
The 36271 is compliant with EU RoHS, EU ELV, China RoHS, and REACH regulations, and is halogen-free. It is suitable for various wire termination applications requiring a reliable ring terminal connection.
The 36271 terminal accepts 10-12 AWG wire.
The stud size is #10.
No, the 36271 terminal is non-insulated.
The 36271 supports crimp and flag termination.
The contact material is copper with a tin finish.
The terminal has a thickness of 0.99mm, width of 9.53mm, and length of 17.83mm.
Yes, the 36271 is EU RoHS Directive 2011/65/EU compliant.
