| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
218 pcs
|
218 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

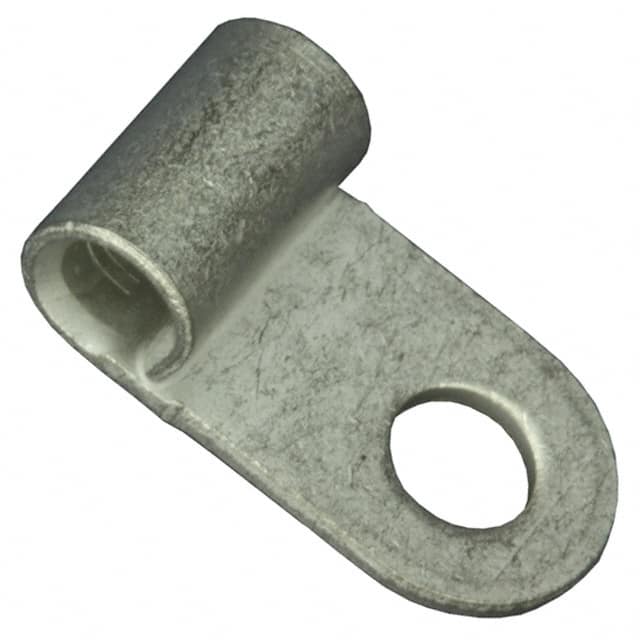

The TE Connectivity 36270 is a non-insulated circular ring terminal designed for 10-12 AWG wire and a #8 stud size. It offers both crimp and flag termination styles, providing flexibility for various wiring configurations.
The terminal features a copper contact with a tin finish, ensuring good conductivity and corrosion resistance. Key design elements include a brazed seam and serrated termination, which enhance mechanical strength and electrical reliability. The part measures 17.83mm in length, 9.53mm in width, and 0.99mm in thickness.
Mounting options include free hanging (in-line) and right angle orientations, making it suitable for space-constrained applications. The terminal is RoHS3 compliant, REACH unaffected, and has an MSL of 1 unlimited.
This ring connector is commonly used in power distribution, grounding, and general electrical connections where a secure, permanent termination is required.
10-12 AWG.
#8 stud.
Crimp and flag.
No, it is non-insulated.
Copper contact with tin finish.
Length 17.83mm, width 9.53mm, thickness 0.99mm.
Free hanging (in-line) and right angle.
