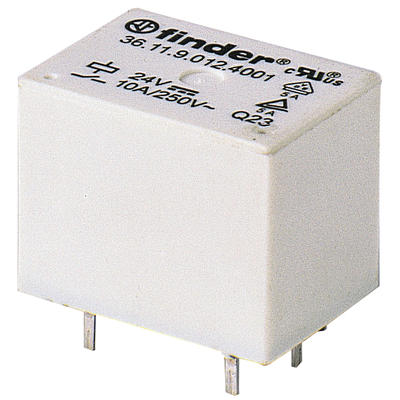

The Finder 36.11.9.012.4001 is a miniature electromagnetic relay designed for various applications. It features a compact "sugar cube" package and 1 pole changeover (SPDT) contacts.
This relay has a rated current of 10A and a maximum switching voltage of 250VAC, with a rated load of 2500 VA for AC1 and 500 VA for AC15 at 230VAC. The coil operates on a nominal voltage of 12VDC and has a rated power of 360 mW. It offers a mechanical life of 10 million cycles and an electrical life of 100,000 cycles at rated load.
Environmental protection is rated at RT III, and the ambient temperature range is -40°C to +85°C. The contact material is Cadmium-free AgSnO2, and it is RoHS compliant. The relay has an insulation of 4kV between coil and contacts and a dielectric strength of 1000VAC between open contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12VDC
250VAC
Miniature 'sugar cube'
Through hole
-40°C to +85°C
1 changeover contact (SPDT)
100,000 cycles
