| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

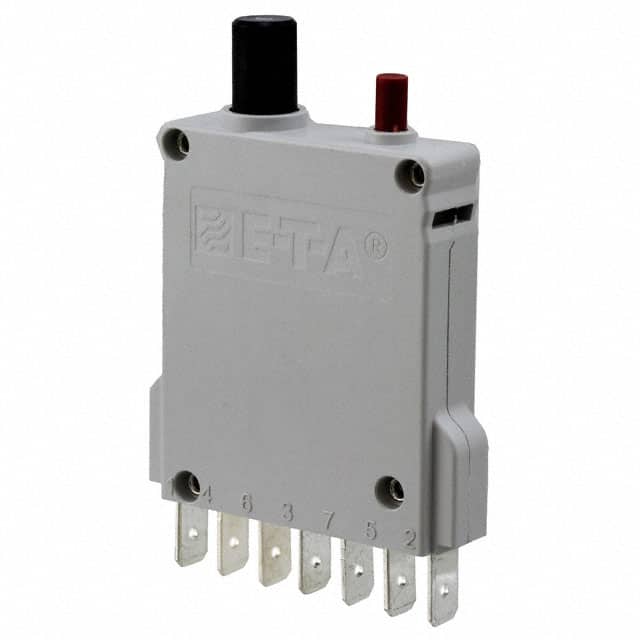

The E-T-A 3600-P10-SI-6A is a single-pole thermal magnetic circuit breaker, part of the 3600/3900 series. It is designed for panel mounting and features a push-to-reset actuator.
This circuit breaker has a current rating of 6A and can handle voltage ratings of up to 250VAC or 65VDC. It is approved by CSA C22.2 No 235, IEC 60934, and UL1077.
Key technical specifications include an interrupting capacity of 400A at 2.5-16A and 200A at 1-2A, with a UL 1077 rating of 1,000A. The operating temperature range is -30°C to +60°C, and it offers a degree of protection of IP40 in the operating area.
Typical applications for this thermal magnetic circuit breaker include process control systems, instrumentation, communications systems, and rail vehicles. It is built with a snap-action mechanism and offers a typical life of 5,000 operations.
The voltage rating is 250 VAC and 65 VDC.
The current rating is 6A.
It is designed for panel mounting.
It is a thermal magnetic circuit breaker.
The ambient temperature range is -30°C to +60°C.
The degree of protection for the operating area is IP40.
