| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
143 pcs
|
143 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Contact Material | |
| Dielectric Withstanding Voltage | |
| Gender | |
| Housing Material | |
| Industry Recognized Mating Diameter | |
| Insertion/Extraction Force | |
| Insulation Resistance | |
| Internal Switch(s) | |
| Mechanical Life | |
| Mounting Type | |
| Number of Positions | |
| SVHC Present | |
| Shield Material | |
| Shielding | |
| Signal Lines | |
| Termination | |
| contact_resistance (Maximum @ Plug to Jack) | |
| contact_resistance (Maximum @ Shunts to Springs) |

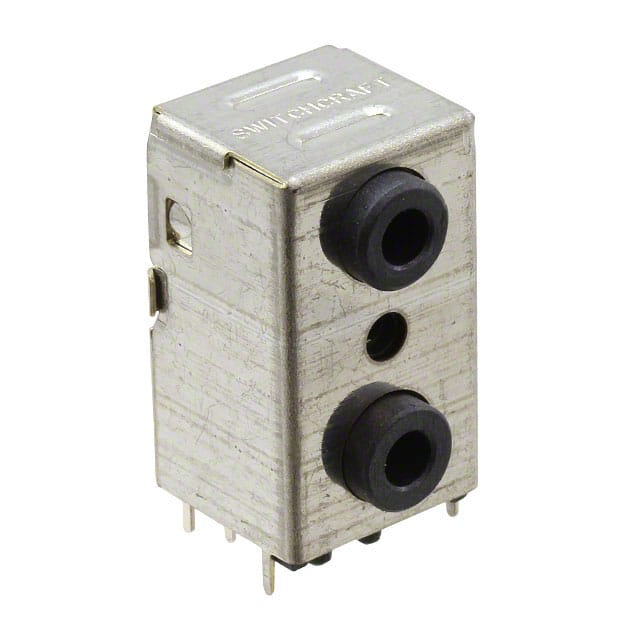

The 35RAPC7JS is a dual phone jack designed for stereo audio applications. It features a 3.50mm industry standard mating diameter with a female connector and three conductor (TRS) signal lines. The connector is shielded for EMI/RFI protection and includes two internal switches for signal routing. Electrical performance includes a dielectric withstanding voltage of 500 VAC, insulation resistance of 100 MOhm minimum, and contact resistance of 50 mOhm maximum from plug to jack. The jack is rated for 5,000 insertion/extraction cycles with an insertion force of 0.8 to 6 lbf. Constructed with silver plated copper alloy contacts, LCP housing, and tin plated copper alloy shield. Mounting is through hole, right angle with solder termination. This RoHS compliant component is suitable for professional audio equipment, musical instruments, and communication devices.
Phone Jack, Dual, Female, Stereo (3 Conductor, TRS).
3.50mm (1/8 inch mini plug).
2 sets of 3 conductors, 8 contacts.
Through hole, right angle with solder termination.
Yes, it is shielded.
Dielectric withstanding voltage is 500 VAC.
Yes, it is RoHS3 compliant.
