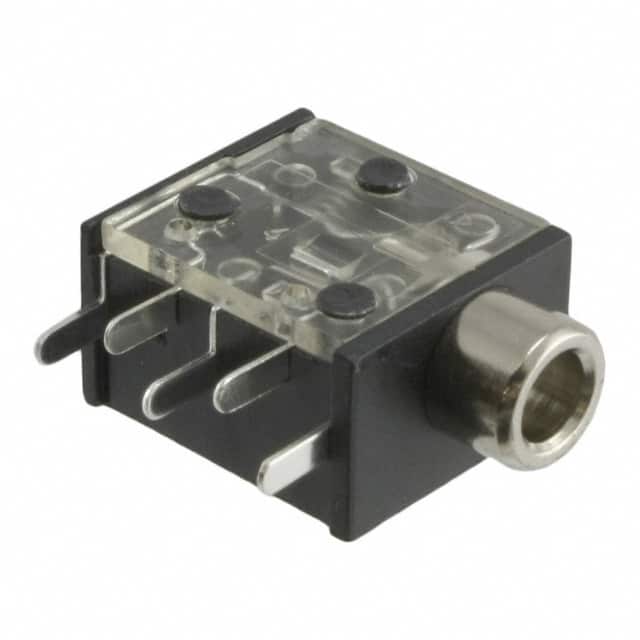

The 35RAPC4BVN4 is a 3.5mm (1/8 inch) stereo phone jack connector designed for audio applications. It is a female connector with a mating diameter of 3.50mm and an actual diameter of 3.60mm. The connector supports three conductors (TRS) and has five contacts, with two internal switches for sensing insertion or other functions. The termination style is solder, and it is mounted through hole with a right angle orientation, making it suitable for PCB edge mounting. This connector is unshielded, so it is best used in applications where EMI shielding is not critical. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The connector is from Conxall/Switchcraft, a known manufacturer of audio connectors. The right angle design allows for space-saving installation on PCBs. The two internal switches can be used to detect plug insertion or to route signals. The 3.50mm diameter is standard for headphone or audio jacks. The part number cross-reference is SC1463-ND from DigiKey.
Phone Jack, Female, 3.5mm.
3 conductors and 5 contacts.
Through hole, right angle.
Stereo (3 conductor, TRS).
No, it is unshielded.
3.50mm (1/8 inch, mini plug).
Yes, two switches.
