| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Features | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Internal Switches | |
| Mating Diameter (Industry) | |
| Mounting Type | |
| Number of Conductors | |
| Number of Contacts | |
| Number of Positions | |
| Shielding | |
| Signal Lines | |
| Tape & Reel | |
| Termination | |
| Termination Style |

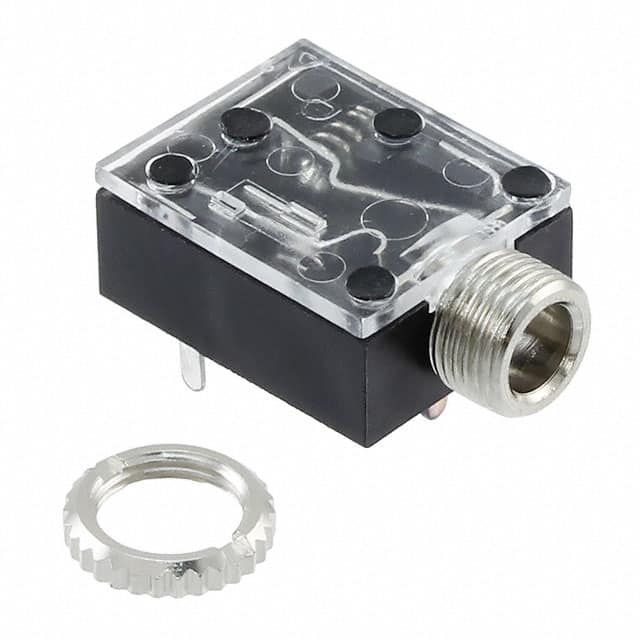

The 35RAPC4BH3 is a 3.5mm stereo phone jack connector designed for audio applications. It is a female connector with 3 conductors (TRS) and 5 contacts, supporting stereo signal lines. The industry recognized mating diameter is 3.50mm (1/8 inch, mini plug), with an actual diameter of 3.60mm.
This connector features two internal switches and is unshielded. It includes mounting hardware and thread lock for secure installation. The mounting type is panel mount, through hole, right angle, with solder termination.
The connector is RoHS3 compliant and REACH unaffected, with a moisture sensitivity level of 1 (unlimited). It is suitable for use in audio equipment, headphones, and other consumer electronics applications.
Panel Mount, Through Hole, Right Angle.
5 Contacts.
Phone Jack, Female, Stereo 3.5mm.
Stereo (3 Conductor, TRS).
Solder.
Yes, two switches.
Industry standard 3.50mm, actual 3.60mm.
