| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | 1337 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Conductors | |
| Number of Contacts | |
| Number of Positions | |
| SVHC Present | |
| Shielding | |
| Signal Lines | |
| Termination | |
| Termination Style |

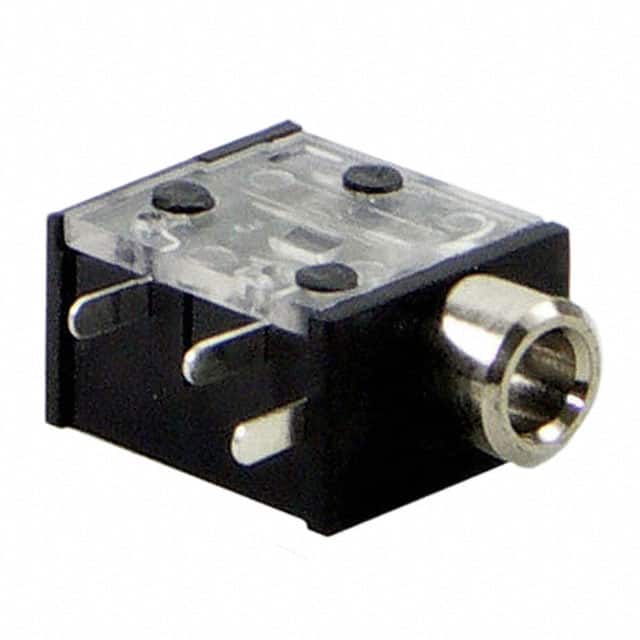

The 35RAPC2BVN4 is a 3.5mm stereo phone jack (TRS) connector from Conxall/Switchcraft. It is a female jack with a 3.50mm industry recognized mating diameter, commonly used for audio applications. The connector has three conductors allowing stereo audio signals with a common ground. It is designed for through hole mounting with a right angle orientation, which helps save space on the PCB. The termination is solder for secure connections. The connector is unshielded and does not contain any internal switches, making it suitable for simple audio signal paths. This phone jack is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).
This phone jack has 3 conductors (stereo TRS).
Through hole, right angle.
The industry recognized mating diameter is 3.50mm (1/8").
No, it is unshielded.
No, it does not contain an internal switch.
Female.
Stereo (3 conductor, TRS).
