| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 1419 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Shelf Life | |
| Width |

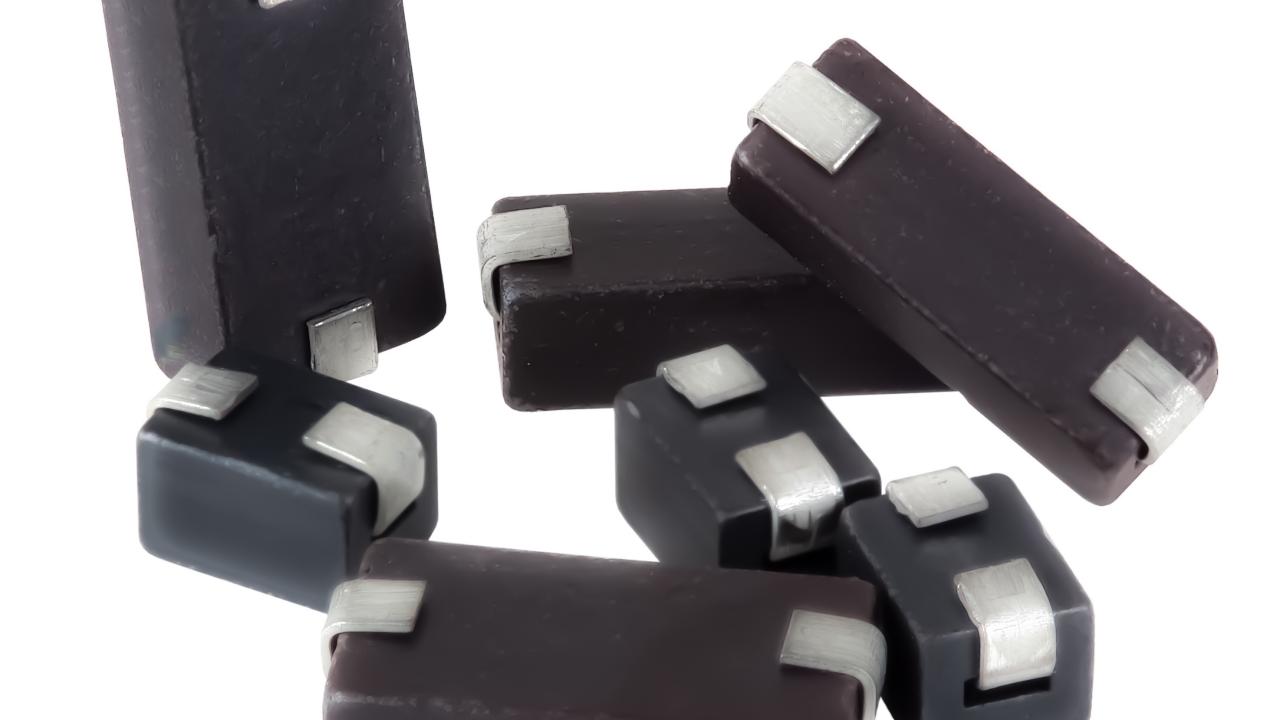

The STEWARD 35F0121-1SR-10 is a Surface Mount Technology (SMT) Ferrite Bead Assembly from the 35F Series. This component is designed for effective EMI suppression and signal filtering in electronic circuits.
Key electrical characteristics include a maximum DC resistance of 0.001 Ohm and a typical impedance of 90 Ohm at 1 GHz. It also provides 82 Ohm at 100 MHz, 35 Ohm at 25 MHz, and 102 Ohm at 500 MHz, with a peak impedance frequency of 17 MHz. The assembly has a typical peak impedance of 104 Ohm and a maximum rated current of 10A.
Operating within a temperature range of -40C to 125C, the 35F0121-1SR-10 features a shelf life of 2 years. Its dimensions are 2.54mm in length, 3.00mm in width, and 8.51mm in height/thickness, with an outer diameter of 3.05mm, making it suitable for SMT mounting.
Compliance information indicates it is Lead Free, REACH Unaffected, and has a Moisture Sensitivity Level of 1. The RoHS status is RoHS3 Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Surface mount (SMT) package.
-40°C to 125°C.
90 Ohm typical.
10 A maximum.
104 Ohm typical at 17 MHz.
0.001 Ohm.
