| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,450 pcs
|
5450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Dielectric Withstanding Voltage | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Noise | |
| Number of Gangs | |
| Number of Turns | |
| Power (Watts) | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

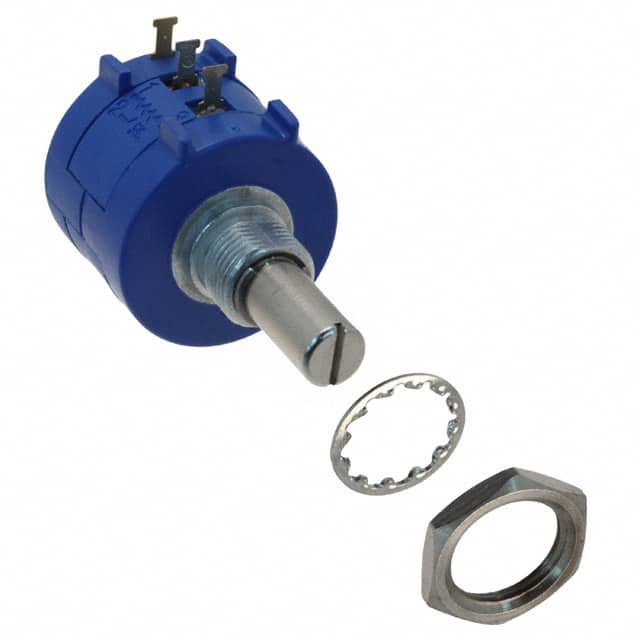

The Bourns 3590S-2-103L is a precision wirewound rotary potentiometer designed for HMI applications. It features a 10k ohm resistance with a ±5% tolerance and a linear taper. The potentiometer is rated for 2 watts of power at 40°C and has a temperature coefficient of ±50ppm/°C.
This model is designed for panel mounting with a 3/8-32 bushing thread and a slotted actuator. It has a 10-turn design, providing precise adjustment capabilities with an effective electrical angle of 3600°. The termination style is solder lug, suitable for various connection methods.
Key electrical characteristics include an independent linearity of ±0.25%, an absolute minimum resistance of 1 ohm or 0.1% (whichever is greater), and a noise level of 100 ohms ENR maximum. The dielectric withstanding voltage is 1,500 VAC minimum, and insulation resistance is 1,000 megohms minimum. It operates at a maximum of 200 RPM.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10k ohms.
The power rating is 2 watts at 40°C.
The tolerance is ±5%.
The resistive material is wirewound.
It is designed for panel mounting.
The termination style is solder lug.
The independent linearity is ±0.25%.
