| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Body Plating | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Current Rating | |
| Insulation Material | |
| Operating Temperature | |
| Operating Voltage |

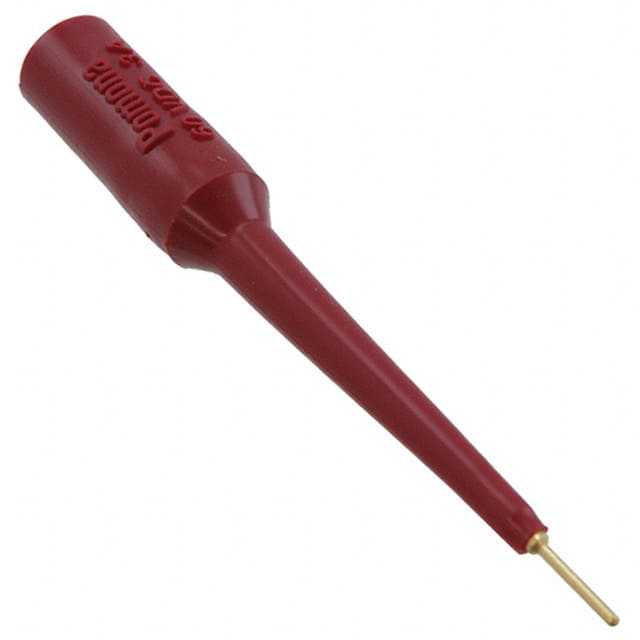

The Pomona Electronics 3561-2 is a connector test adapter designed for testing multi-socket connectors. It converts a 0.040" diameter pin to a banana jack, with a flexible tip that allows easy access to adjacent pins. The adapter is constructed with a brass banana jack body finished in bright tin plating over copper, and a lower pin contact made of brass with gold plating over electroless nickel. The insulation is made of polyvinyl chloride (PVC).
Electrically, the 3561-2 is rated for a maximum operating voltage of 2500 VAC/DC and a maximum current of 7.5 A. The operating temperature range is up to +50°C. This adapter is designed for use with 20 gauge multi-socket or panel connectors. The color is red, and the component is marked "POMONA ELECTRONICS, CALIF." Made in the USA.
Standard package quantity is 1 piece. Compliance with RoHS and REACH is unverified; verify with manufacturer.
7.5 A maximum.
2500 VAC/DC.
Up to +50°C.
Brass with gold plating over electroless nickel.
Red.
Converts a 0.040" diameter pin to a banana jack.
