| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Failure Rate | |
| Flammability Rating | |
| Flange Feature | |
| Insulation Material | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Strain Relief Material | |
| Termination | |
| Termination Style | |
| Wire Gauge (AWG) | |
| Withstanding Voltage |

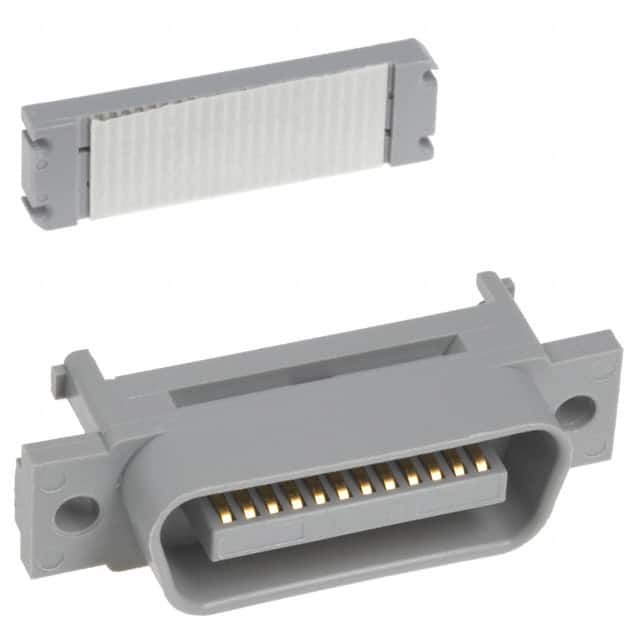

The 3M 3548-1000 is a 24 position centronics plug from the 3000 Series, designed for IDC termination to 26-28 AWG solid or stranded wire. It features a glass filled polyester (PBT) insulator with UL 94V-0 flammability rating and a gray color. The contacts are copper alloy with a gold wiping area of 0.76 µm over a nickel underplating. The strain relief is made of stainless steel.
Electrical ratings include a maximum current of 1 A, minimum insulation resistance of 1 × 10^9 Ω at 500 VDC, and a withstanding voltage of 1000 Vrms at sea level. The operating temperature range is -55°C to +105°C. The connector is RoHS compliant per the datasheet.
This plug is suitable for free hanging (in-line) mounting and accepts .050 inch round, flat, or jacketed cable. The design supports multiple insertion/withdrawal cycles and an optional bail mount kit is available.
The maximum current rating is 1 A.
The operating temperature range is -55°C to +105°C.
It accepts 26-28 AWG solid or stranded wire.
The minimum insulation resistance is 1 × 10^9 Ω at 500 VDC.
Yes, it is RoHS compliant per the datasheet.
