| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Inner Diameter (Min) | |
| Barrel Type | |
| Body Style | |
| Class | |
| Contact Finish | |
| Contact Material | |
| ELV | |
| Features | |
| Government/Industry Qualification | |
| Heavy Duty | |
| Insulation | |
| Insulation Support | |
| Lead Free Solder Processes | |
| Length | |
| Mounting Type | |
| Packaging Method | |
| Receptacle Style | |
| Stud | |
| Stud Diameter | |
| Stud Size | |
| Terminal Shape | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge | |
| Wire Range (CMA) | |
| Wire/Cable Type |

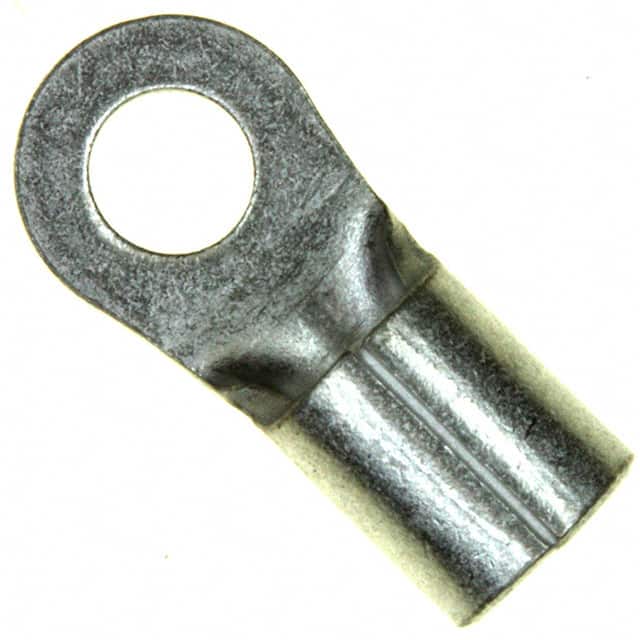

The 2-35476-1 is a ring tongue terminal from TE Connectivity's SOLISTRAND series. It is designed for 10-12 AWG wire and accommodates a #6 (M3.5) stud size. The terminal features a circular ring tongue shape with a straight receptacle style and a closed barrel design.
Constructed from copper with a tin finish, it offers good conductivity and corrosion resistance. The terminal is non-insulated and does not include insulation support. It has a brazed seam and serrated termination for secure wire grip. The barrel inner diameter is 3.28 mm, and the overall dimensions are 16.00 mm length, 7.14 mm width, and 0.99 mm thickness.
This terminal is suitable for free hanging (in-line) mounting and uses crimp termination. It is rated Class 2 and is not heavy duty. The part is RoHS and ELV compliant, and meets military standard MS20659-165.
The terminal is supplied tape mounted for regular wire. It is intended for use in aerospace, defense, and other demanding applications.
10-12 AWG.
#6 (M3.5).
Free hanging (in-line).
No, it is non-insulated.
Ring tongue.
Copper with tin finish.
Yes, RoHS compliant.
