| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Gender | |
| Insulation | |
| Insulation Material | |
| Lead Style | |
| Mating Pin Diameter | |
| Mounting Type | |
| Nut Thread Size | |
| Operating Temperature Max | |
| Package Quantity | |
| Panel Thickness (max) | |
| Plug | |
| Plug Type | |
| Termination | |
| Termination Style | |
| Type | |
| Voltage Rating (Hands Free) |

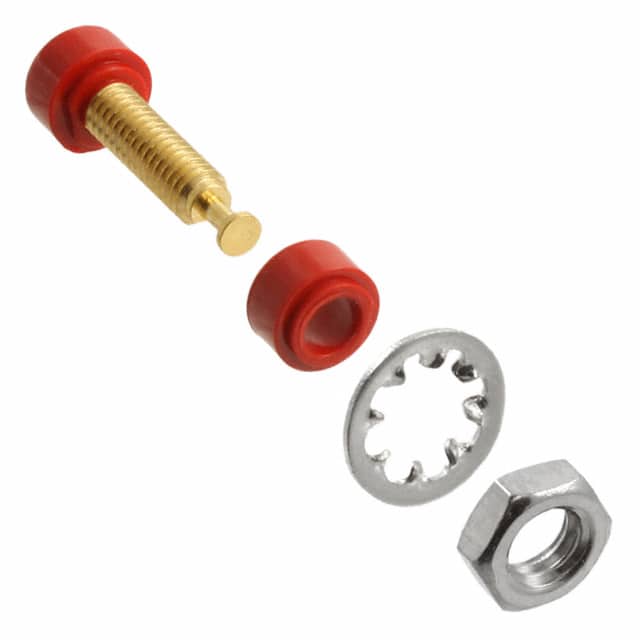

The Pomona Electronics 3542-2 is a red panel mount tip jack designed for accepting standard 0.080 inch diameter pin tip plugs. It features a female gender with mating end insulation and a threaded and turret termination style for secure panel mounting. The contact is made of gold plated brass, ensuring reliable electrical performance and corrosion resistance. The insulation is molded polycarbonate, providing durability and electrical isolation.
Rated for 5 amps continuous current and a maximum operating voltage of 1500 Vrms in hands-free controlled voltage environments, this tip jack is suitable for test and measurement applications. For CE compliance, it is not intended for hand-held use above 33 Vrms or 70 Vdc. The operating temperature range extends up to 115°C.
The jack mounts in panels up to 0.250 inches thick using a #8-32 threaded nut and internal tooth lockwasher. It is sold in packages of 10 units. The red color coding aids in identification and organization in complex wiring setups.
5 A.
1500 Vrms maximum for hands-free usage in controlled voltage environments. For CE compliance, not intended for hand-held use above 33 Vrms/70 Vdc.
Panel Mount.
Red.
Threaded and Turret.
0.080 in (2.032 mm).
Polycarbonate.
