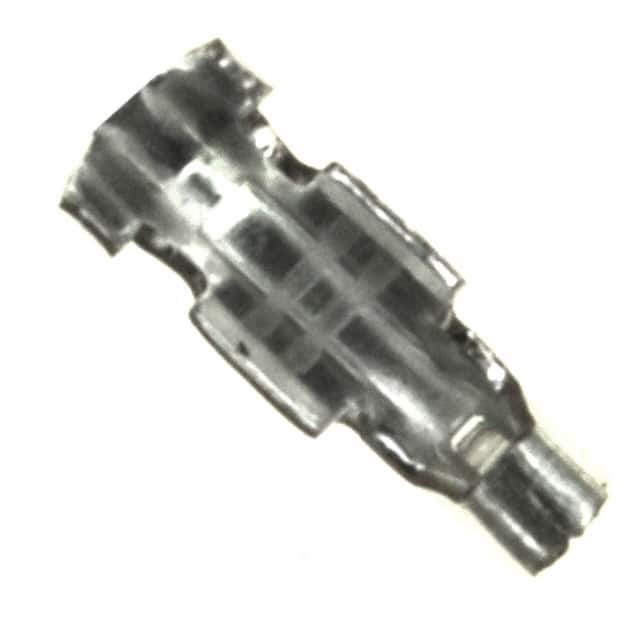

353907-1 TE Connectivity 353907-1 is a crimp socket contact for 24-28 AWG wire, tin plated, rated 2A and 50 VAC. Part of the AMP Mini CT series for wire-to-board, wire-to-panel, and wire-to-wire systems.
Mfr Part #:

353907-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 353907-1 is a crimp socket contact for 24-28 AWG wire, tin plated, rated 2A and 50 VAC. Part of the AMP Mini CT series for wire-to-board, wire-to-panel, and wire-to-wire systems.
✓ Total Stock: 525,000 pcs

353907-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
450,000 pcs
On Request
450000 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
75,000 pcs
On Request
75000 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

353907-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector System
Contact Base Material
Contact Finish
Contact Termination
Contact Type
Halogen Free
Insulation Resistance
Operating Temperature Range
Operating Voltage
Pin or Socket
Wire Gauge
View Similar Products (0)

353907-1 Description

Short technical summary and product information.

The TE Connectivity 353907-1 is a crimp-type socket contact from the AMP Mini CT series, designed for signal-level wire-to-board, wire-to-panel, and wire-to-wire connections. It accepts 24-28 AWG discrete wire with an insulation diameter range of 0.85-1.05 mm and a wire size of 0.08-0.2 mm².



The contact is made from phosphor bronze with a pre-tin (tin) plating on the mating area, 0.2 µm thick. It mates with a 0.5 mm square post and is rated for 2 A maximum current and 50 VAC operating voltage. Insulation resistance is 500 MΩ, and the operating temperature range is -30 to 105 °C.



This contact is non-sealable and intended for signal circuit applications. It is terminated by crimping and mounts in a cable mount (free-hanging) configuration. The part is supplied in strip packaging with 15,000 pieces per strip.

353907-1 Quick Information

Product Type: Rectangular Connector Contact
Series: MINI COMMON TERMINATION CONTACTS
Canonical Name: TE Connectivity AMP Mini CT Crimp Socket Contact, 24-28 AWG, Tin Plating
Subcategory: Wire-to-Board Connector Contacts

353907-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Does not contain REACH SVHC

353907-1 Features

  • Crimp termination for 24-28 AWG wire.
  • Tin plated phosphor bronze contact base.
  • Rated for 2 A and 50 VAC operation.
  • Mates with 0.5 mm square post.
  • Operating temperature range -30 to 105 °C.

353907-1 Applications

  • Signal connections in wire-to-board assemblies.
  • Wire-to-panel and wire-to-wire harnesses.
  • Compact electronic device interconnects.
  • Automotive and industrial control signal circuits.

353907-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What wire gauge does the 353907-1 accept?

It accepts 24-28 AWG wire (0.08-0.2 mm²).

What is the current rating of this contact?

The maximum current rating is 2 A.

What is the operating voltage?

The operating voltage is 50 VAC.

What is the operating temperature range?

The operating temperature range is -30 to 105 °C.

What is the contact base material and plating?

The contact base material is phosphor bronze with a tin (pre-tin) plating 0.2 µm thick on the mating area.

Is this contact sealable?

No, it is not sealable.

What connector systems is this contact compatible with?

It is compatible with wire-to-board, wire-to-panel, and wire-to-wire systems.
