| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

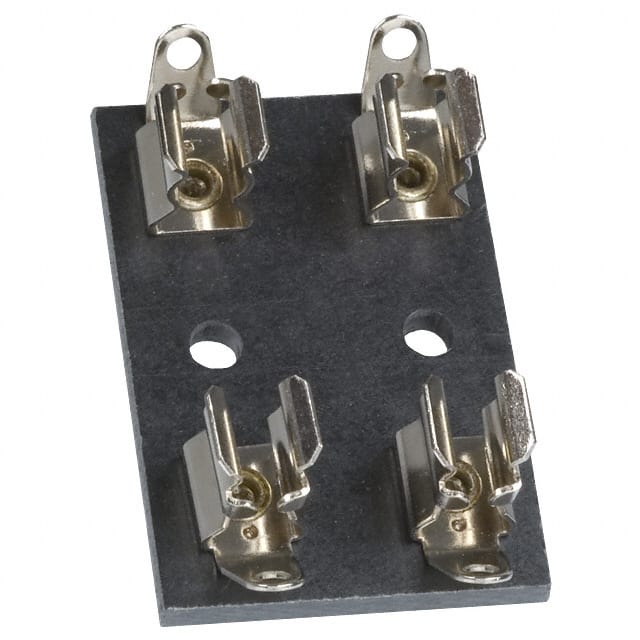

The Keystone Electronics 3537 is a fuse block designed for cartridge fuses, specifically accommodating 3AG and SFE-20 (1/4" x 1-1/4") types. This component features a chassis mount for secure installation and solder lug termination for reliable connections.
With a robust electrical specification, the 3537 is rated for 500V and 15A, making it suitable for various circuit protection applications. It includes two circuits for fuse placement. The operating temperature range is from -50°C to +145°C, ensuring performance in diverse environmental conditions.
Constructed with brass contacts and a nickel finish, this fuse block is built for durability and low contact resistance. Its design prioritizes reliable fuse holding and circuit integrity.
500V.
15A.
It accepts 3AG, 1/4" x 1-1/4" (SFE-20) cartridge fuses.
Chassis mount.
-50°C to +145°C.
2.
Solder lug.
