| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination |

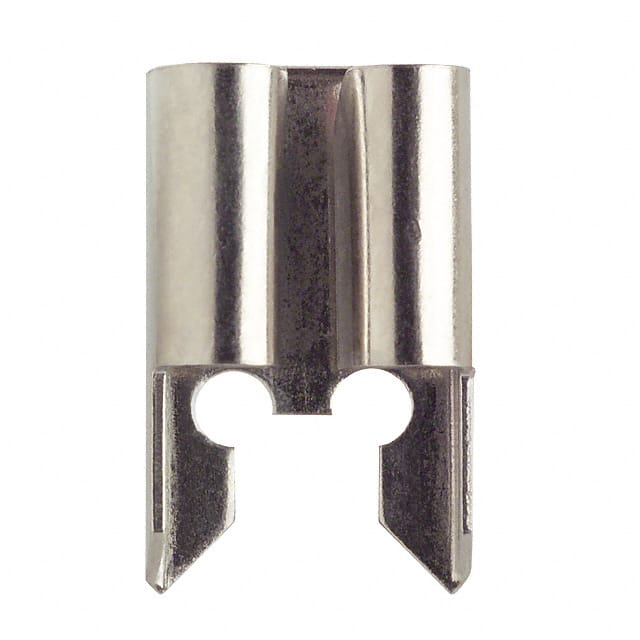

The Keystone Electronics 3534 is a non-insulated female quick connect receptacle designed for 0.110" (2.79mm) male tabs. It features a through hole mounting style with solder termination, making it suitable for permanent connections in various electronic assemblies. The receptacle accepts tabs with a width of 0.110" (2.79mm) and thickness of 0.020" (0.51mm). The tab length is 0.196" (4.98mm). The overall component length is 11.18mm (0.440"). The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The part is non-insulated, offering a compact footprint. This quick disconnect terminal is ideal for applications requiring reliable, repeatable connections in power distribution, control systems, and automotive electronics. The through hole mounting ensures secure attachment to PCBs, while the solder termination provides a permanent electrical connection.
Through hole with solder termination.
0.110" (2.79mm).
0.020" (0.51mm).
Brass with a tin finish.
No, it is non-insulated.
11.18mm (0.440").
Female.
