| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Coil Voltage | |
| Contact Material | |
| Contact Resistance | |
| Height | |
| Length | |
| Mounting Type | |
| Terminal Type | |
| Width |

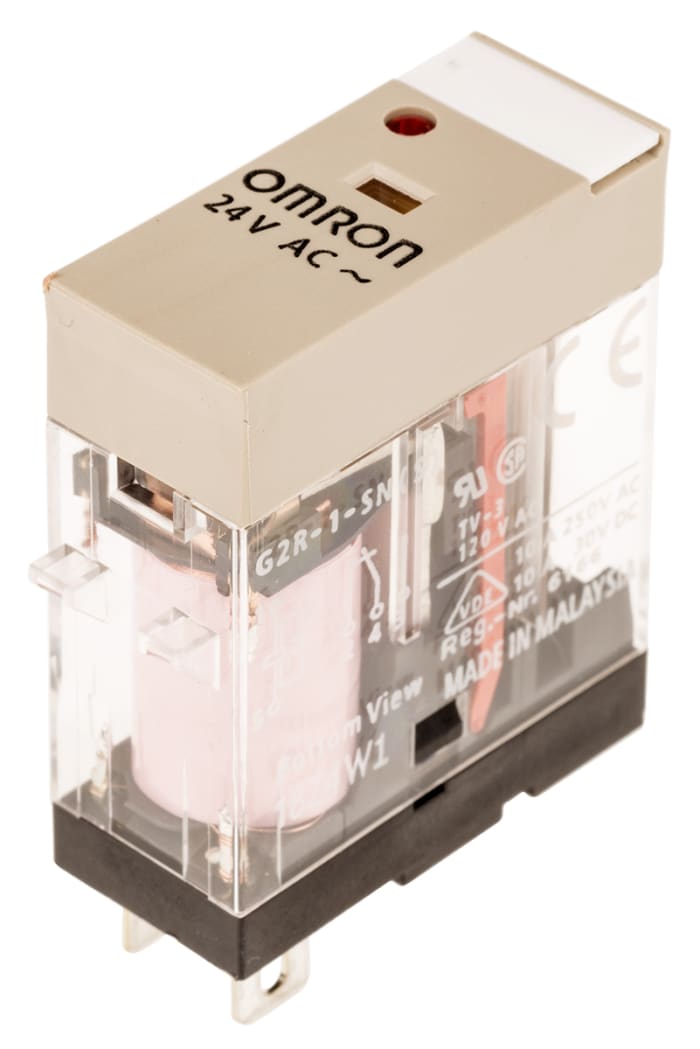

The Omron G2R-1-SN 24VAC (S) is a compact, electromechanical, non-latching power relay from the G2RS series. It offers a Single Pole Double Throw (SPDT) contact configuration, capable of switching up to 10A. The relay is designed with a 24V AC coil and features quick connect terminals for convenient termination.
With a switching power rating of 2.5kVA, it can handle 125V AC or 125V DC loads. The operating temperature range is from -40°C to 70°C, making it suitable for various environmental conditions. The contact resistance is a low 100mΩ, and coil to contact isolation is rated at 5000V AC.
This relay is ideal for general-purpose applications and is noted for being cadmium and lead-free. Its compact dimensions (29mm height, 29mm length, 13mm width) make it a space-saving solution in designs. Applications include medical health care, lifts and elevators, gas and electric boilers, and domestic appliances.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24V AC.
The contact configuration is SPDT (Single Pole Double Throw).
The maximum switching current is 10A.
The operating temperature range is from -40°C to 70°C.
The dimensions are 29mm in height, 29mm in length, and 13mm in width.
Yes, it is RoHS3 Compliant.
