| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
301 pcs
|
301 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Industrial Grade | |
| Insulator Material | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| SVHC Present | |
| Termination Style | |
| UL Current Rating | |
| UL Flammability Rating | |
| UL Temperature Rating | |
| Voltage |

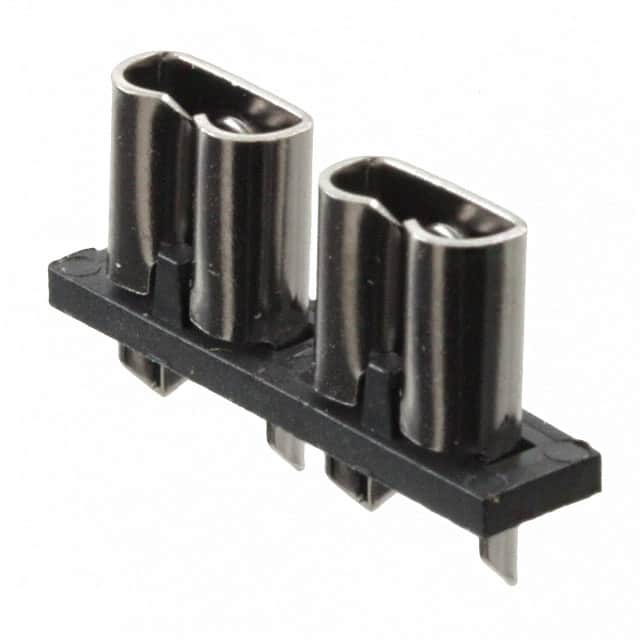

The Keystone Electronics 3522-2 is a single-circuit vertical blade fuse clip block designed for use with ATC and ATO blade fuses measuring 0.75" L x 0.2" W (19.1mm x 5.1mm). It is rated for 20A at 500V AC and features a through-hole mounting style with PC pin termination.
The insulator is made of UL 94V-0 rated nylon, and the brass contacts are finished with tin-nickel plate. The UL temperature rating spans -50°C to +145°C. The vertical orientation allows for compact PCB layouts, and the design holds the fuse securely even after multiple insertions while preventing solder wicking during wave soldering.
20 A at 500V AC.
500 V AC.
ATC and ATO blade fuses measuring 0.75" L x 0.2" W (19.1mm x 5.1mm).
Through-hole with PC pin termination.
-50°C to +145°C.
Nylon with UL 94V-0 rating.
