| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request | |
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Contact Thickness | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Type | |
| Fuseholder Type | |
| Insulator Material | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| SVHC Present | |
| Termination Style | |
| UL Current Rating | |
| UL Temperature Rating | |
| Voltage |

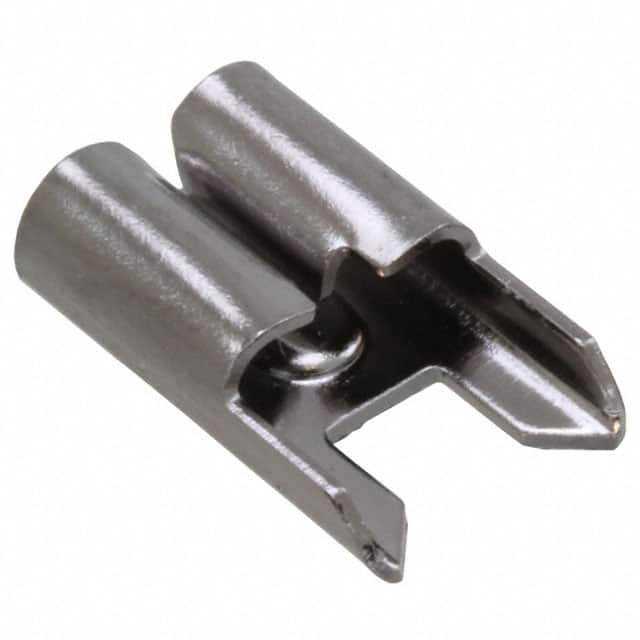

The Keystone Electronics 3522 is a vertical blade fuse clip designed for use with ATC and ATO blade fuses, including Littelfuse ATOF 257 series and Bussmann ATC series equivalents. It is rated for 30A at 500V AC and features a UL temperature rating of -50°C to +145°C. The clip is constructed with 0.016 inch thick brass contacts with a tin finish and a Nylon 4/6 insulator rated UL 94V-0. It is designed for through-hole mounting with PC pin termination, making it suitable for wave soldering processes. The holder design prevents solder wicking and maintains position during assembly.
30 A at 500 V AC.
500 V AC.
Blade fuses, specifically ATC and ATO types.
Through-hole with PC pin termination, vertical orientation.
-50°C to +145°C.
