| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
506 pcs
|
506 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Mount | |
| CompactPCI Designation | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Plating (Mating Area) | |
| Contact Style | |
| Contact configuration | |
| Crosstalk Version | |
| Feedthrough Post Length | |
| Grounding Contact | |
| Housing Color | |
| Housing Material | |
| Interface Type | |
| Mating Alignment | |
| Mating Alignment Type | |
| Module Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Rows Loaded | |
| Shield Style | |
| Shield Type | |
| Shielded | |
| Termination | |
| Termination End Plating |

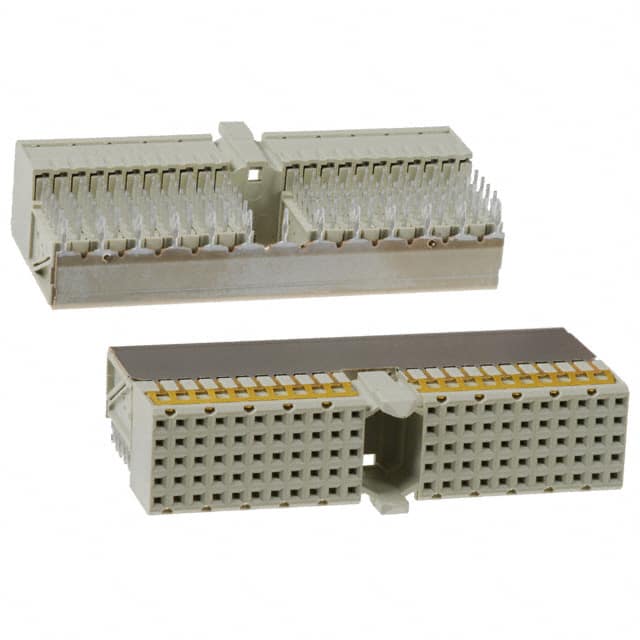

The TE Connectivity Z-PACK 2mm HM 352068-1 is a 110-position, 5-row receptacle designed for CompactPCI J1/J4 backplane applications. This Type A connector features a 2.00mm pitch and uses press-fit termination for reliable, solderless board attachment. The housing is gray polyester with glass fiber reinforcement, and the contacts are gold plated with 30µin thickness in the mating area. The connector includes an upper ground return shield and a multi-purpose center mating alignment feature.
Designed for right angle through hole mounting, this receptacle supports free board mounting and has a module length of 50.00mm. The termination ends are plated with tin-lead over nickel. All 110 positions are loaded in rows E, D, C, A, and B. The connector uses standard crosstalk version design and signal ACTION PIN post contacts with a short tail configuration.
This connector is part of the Z-PACK 2mm HM interface family and is suitable for high density backplane systems requiring reliable signal integrity. It is not compliant with EU RoHS or ELV directives.
110 positions loaded in 5 rows (E, D, C, A, B).
2.00mm (0.079 inches).
Through hole, right angle, with press-fit termination.
No. The datasheet explicitly states it is not EU RoHS or ELV compliant.
Gold finish with 30 microinches (0.76 micrometers) thickness in the mating area.
2mm HM (Hard Metric) interface, compatible with CompactPCI J1 and J4.
Yes, it includes an upper ground return shield.
